1 Safety precautions

Read all safety instructions before installing and using this product. Save this document for future reference. If ownership of this product is transferred, be sure to include this manual. Following coloured frames are used in this manual to draw attention to important information or warnings:

1.1 General safety

• Use the QS-210 only for its intended purpose, according to instructions.
• Unplug the QS-210 from the power supply if it is not used for an extended period or when there is a need to perform hardware installation, maintenance, servicing or repairs.
• Turn off the QS-210 when it is not in use.
• The QS-210 was designed for indoor use only - DO NOT store or use the product outdoors.
• Keep the QS-210 away from the heat sources, high humidity, water, and other liquids. DO NOT store in cold place where water condensation may occur.
• DO NOT disassemble the product. Any tampering with or altering the product will void the warranty, poses a serious risk of electric shock, and may irreparably damage the product.
• DO NOT cover the ventilation holes in the Power Cabinet.
• Keep the power cord plug and the socket dry, clean and dust-free.
• Protect the power cord from damage caused by being stepped on, rubbed against, or pinched.
• DO NOT use the QS-210 if the ambient temperature is below 5° Celsius (41° Fahrenheit) or above 40° Celsius (104° Fahrenheit).
• DO NOT use the QS-210 if it has been damaged, or any component is broken or missing. Please contact technical support.
• DO NOT use attachments or replacement parts not recommended or approved by the manufacturer. If you must replace a power cord, use only certified products with the same rating as the one being replaced.
• Connect the QS-210 to a properly grounded outlet only.
• If you want to increase safety level of the system, you can add external safety devices. For detailed information check section 7.

1.2 Health and Safety Instruction

The safety of Qubic System users is top priority. To protect users and bystanders from injuries caused by mechanical parts movement and electric shock, the following instructions MUST BE followed. What must be checked before turning on the device:

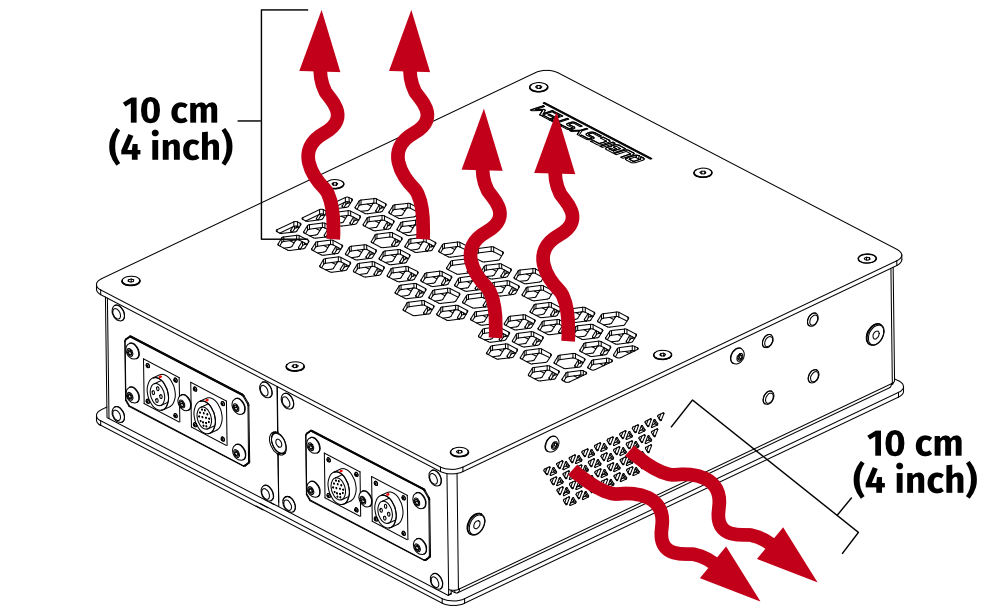

• Ensure that nothing is blocking machine's movements or air vents. The minimum distance between the air vents in the Power Cabinet's and any outside part of the cockpit equipment is 10 cm (4 in).


  Image: qs-sb2_air_vents_weipu.png
• Check if cables are mounted correctly – they must NOT be stretched or loosely connected to the socket. Placed them out of the moving range of the device components.
• Check if all components are correctly mounted.
• Check if there are no sharp edges near the moving range of the cockpit.

How to safely turn on and use the QS-210 :

• Ensure that everyone around is aware of cockpit's rapid movements.
• Ensure that no one stands in the range of the motion (minimum of 1.5 m [5 feet]).

• DO NOT change the payload weight mounted to the QS-210 during a start-up calibration.
• Motion Lock Switch should be mounted within the reach of the user – it has to be available immediately in every situation. Different seat positioning setups should be taken into account.
• Check the Motion Lock Switch AT LEAST once a month to reduce the possibility of unknown and unexpected failure – more information available in chapter 5.
• Before getting on and off the machine activate Motion Lock Switch by pressing it down.
• In case of game crash or freeze - Motion Lock Switch must be triggered (pressed down) before getting off the machine.

• For VR Headset users:
  • Remove the VR goggles before entering or exiting the rig.
  • Ensure that cables from the VR Headset are not in the movement range of the QS-210 .
  • Ensure that the whole VR setup is not in the motion range of the QS-210 .
  • Ensure that VR setup cables are protected from being crushed by the QS-210  - DO NOT place them loosely under the motion rig.

• DO NOT use QS-210 if you are pregnant, tired, or under the influence of alcohol or narcotic substances.
• STOP USING the QS-210 immediately if you start feeling pain, fatigue or any physical or mental discomfort.
• For every two hours of playing, we recommend at least 15 MINUTES OF BREAK.
• DO NOT put your hands or legs in the actuator's range of motion!
• DO NOT use the QS-210 with small children or pets around.

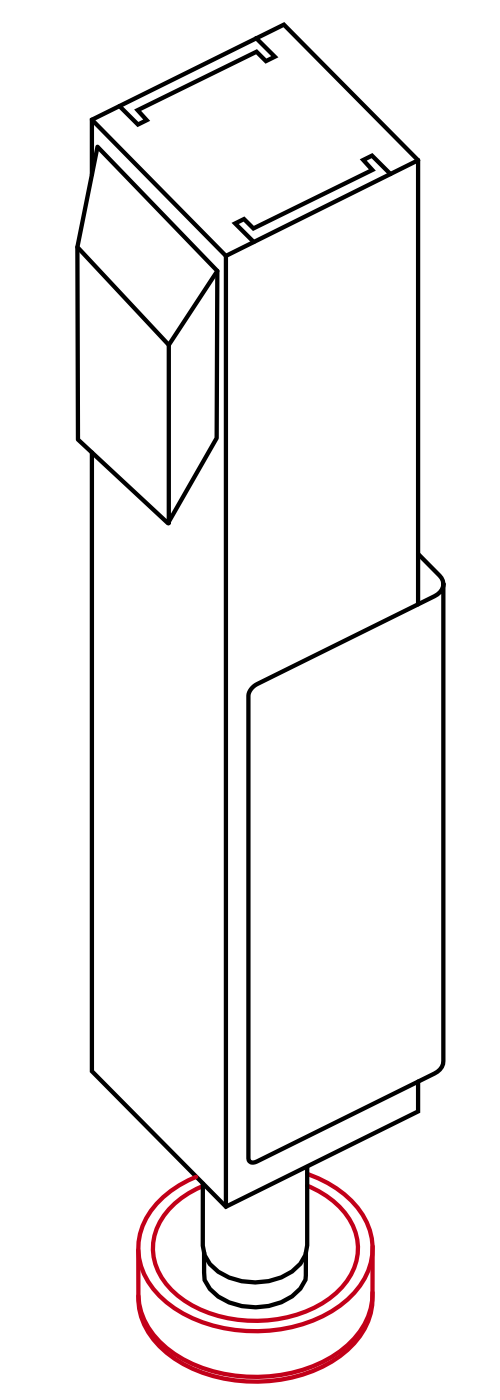

• DO NOT put any items between actuators and stabilization pads.

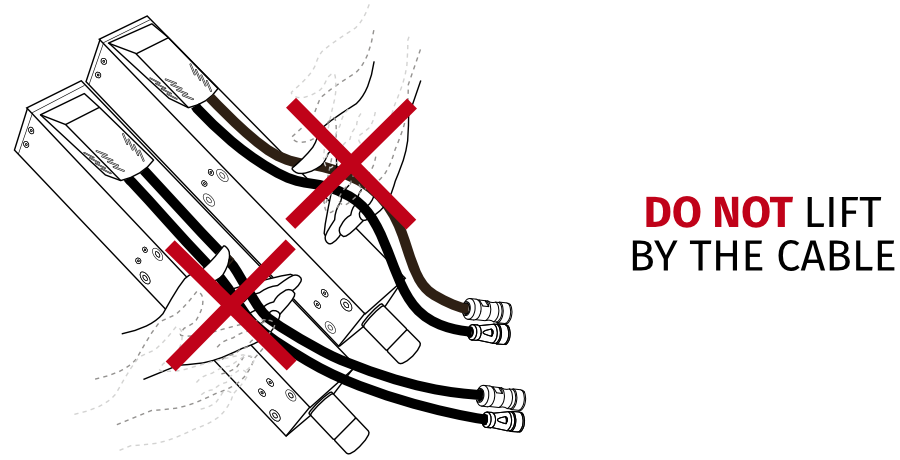

• DO NOT pull the wires connecting the actuators with the Power Cabinets.

2 Technical details

2.1 Intended use

QS-210 is a set of industrial-grade linear actuators with Power cabinets and mounting and connection accessories. It enables users to introduce vertical movement into their gaming rigs to increase the immersion of the simulation. QS-210 could be set out into two variants - 2DoF (two degrees of freedom) and 3DoF. It is designed with upgradeability in mind – it is possible to expand from 2DoF to 3DoF setup later on. Available variants are presented below (illustrations show an example assembly).

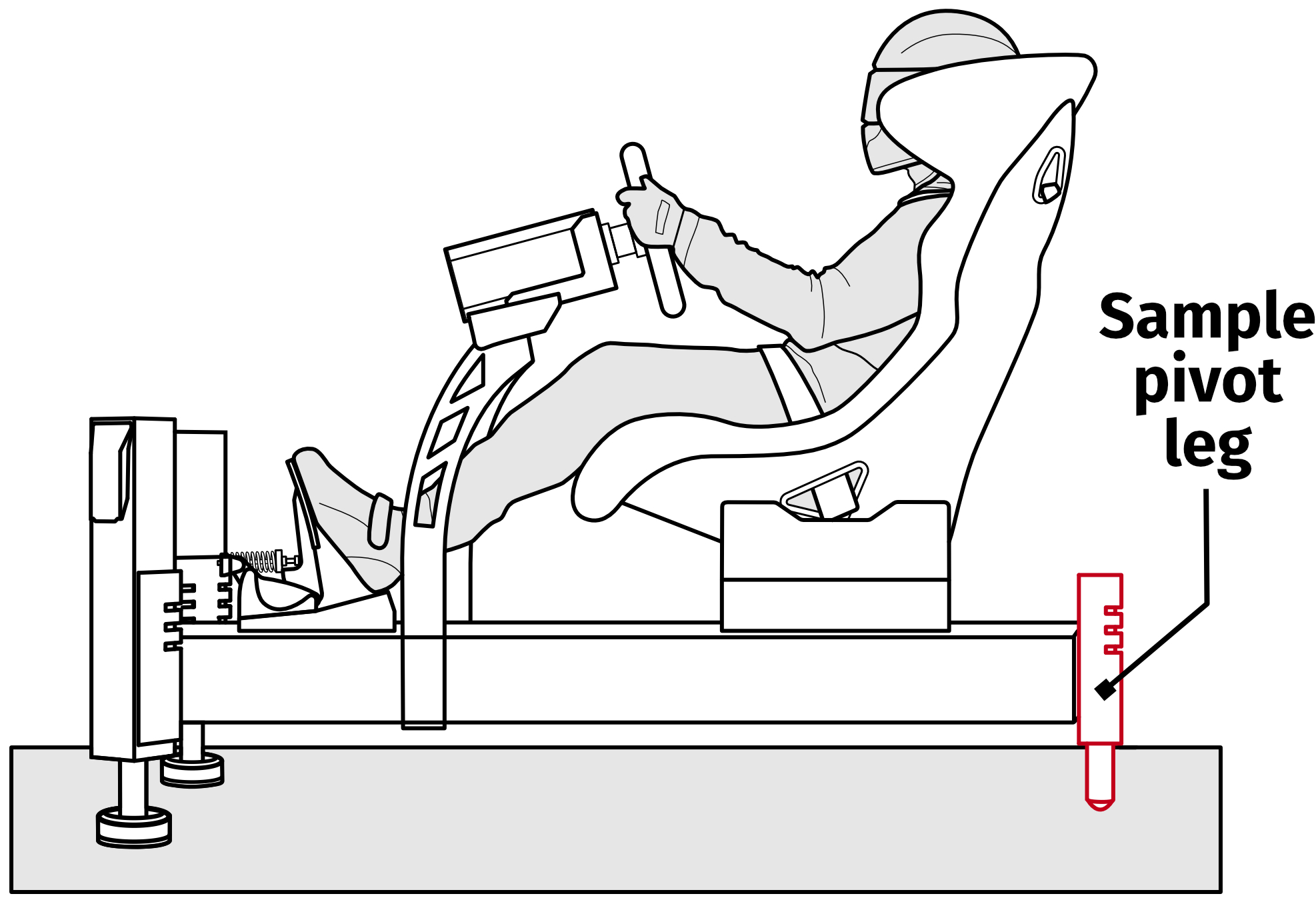

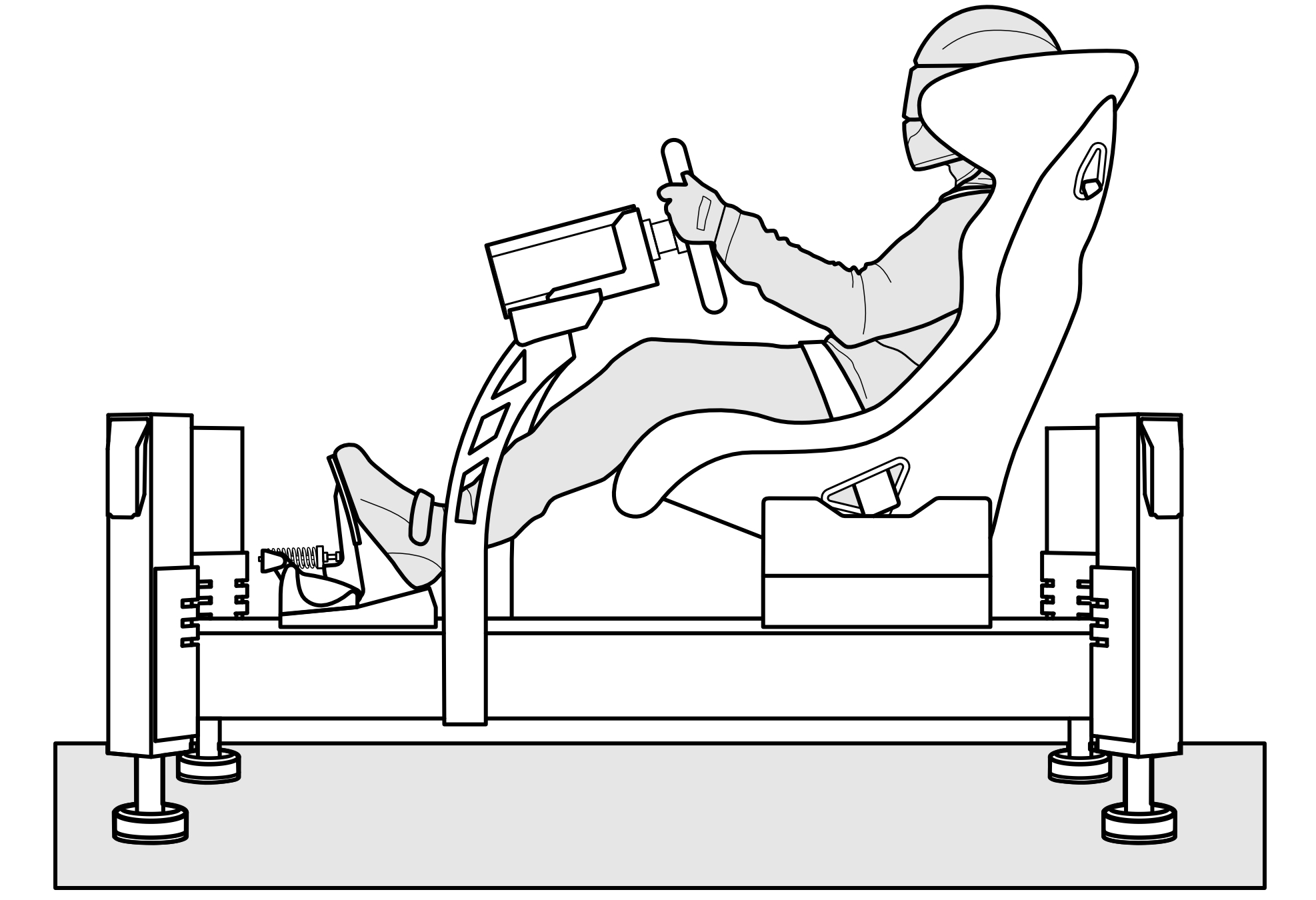

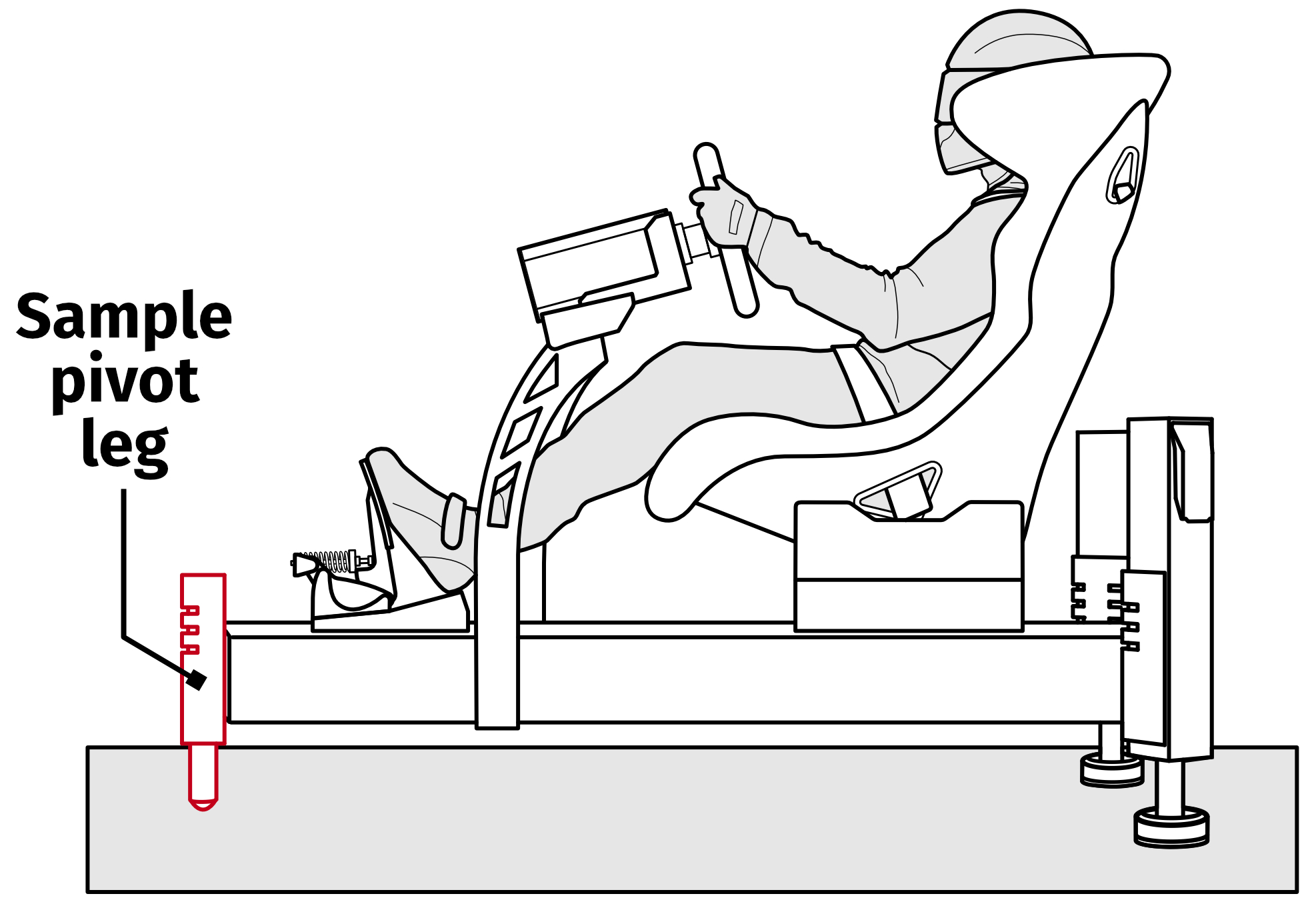

Image: qs-210-220_2dof_pivot_leg_back.jpg

Image: qs-210-220_2dof_pivot_leg_front.jpg

Image: qs-210-220_3dof_no_pivot_leg.jpg

2.2 List of components

Qubic System provides the option to buy the QS-210 motion set with QS-MC6 controller set and QS-210 2DoF ( QS-210 is delivered without the pivot leg) or 3DoF set.

2.2.1 QS-MC6 set

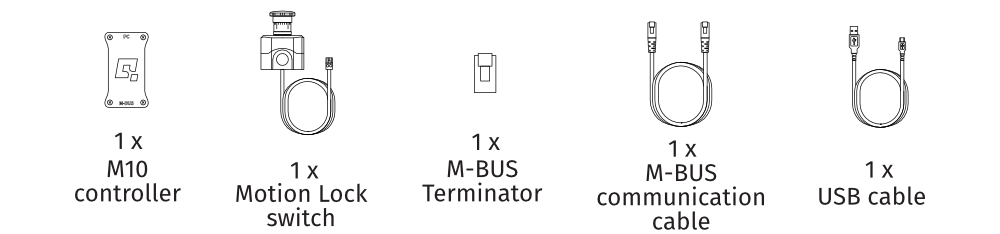

M10 controller (from the QS-MC6 set) is specifically designed to use communication protocol created by Qubic System. It allows for connecting PC with the QS-210  - DO NOT try to substitute this device. M10 requires USB connection (with an USB port on your PC). The QS-MC6 set includes following components:

2.2.2 QS-210 2DoF set

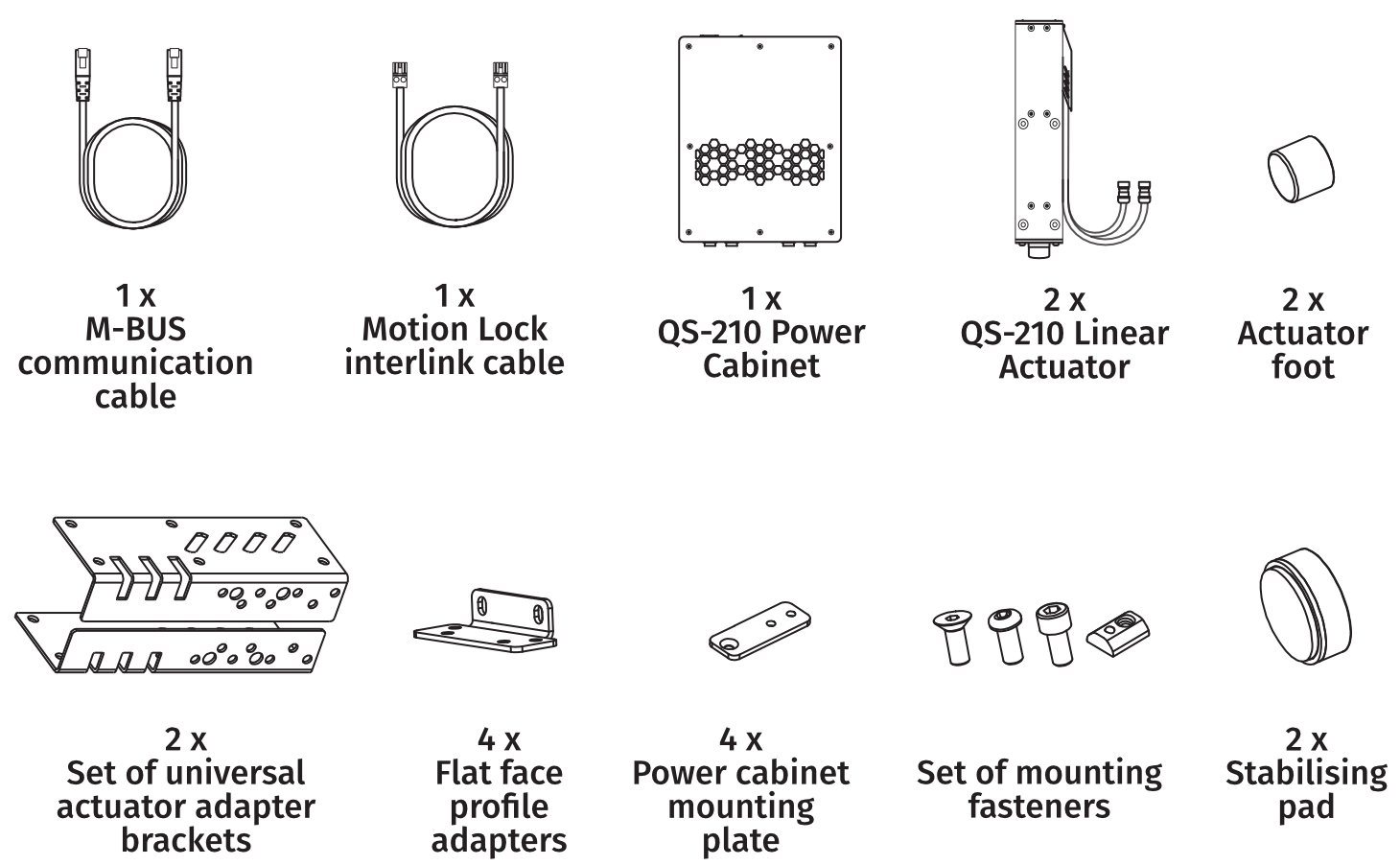

QS-210 2DoF is a set composed of two actuators and a Power Cabinet. It is possible to expand 2DoF setup into 3DoF setup later on by purchasing another QS-210 2DoF set. It can be used to set up various motion rigs. For installation details go to section 4.2. The QS-210 2DoF set includes following components:

2.2.3 QS-210 3DoF set

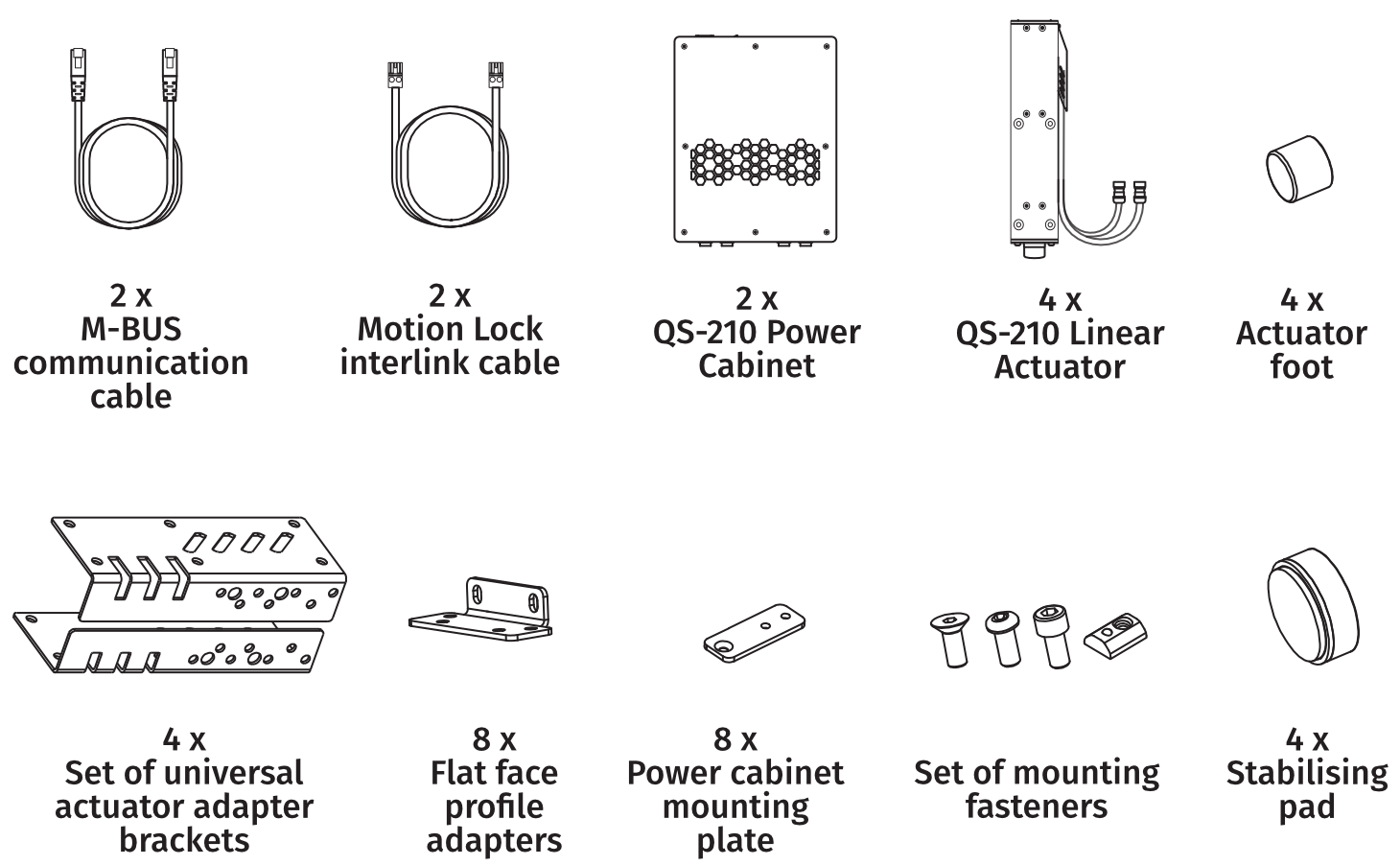

QS-210 3DoF is a set composed of four actuators and two Power Cabinets. It can be used to set up various motion rigs. For installation details go to section 4.2. The QS-210 3DoF set includes following components:

2.2.4 Power Cord

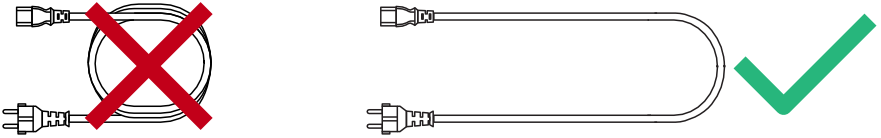

Image: power_supply_cable.png

The power cord for QS-210 is provided as a separate component and is selected based on the electrical standards and socket types applicable in the target market. This ensures compatibility with regional voltage, frequency, and plug configurations.

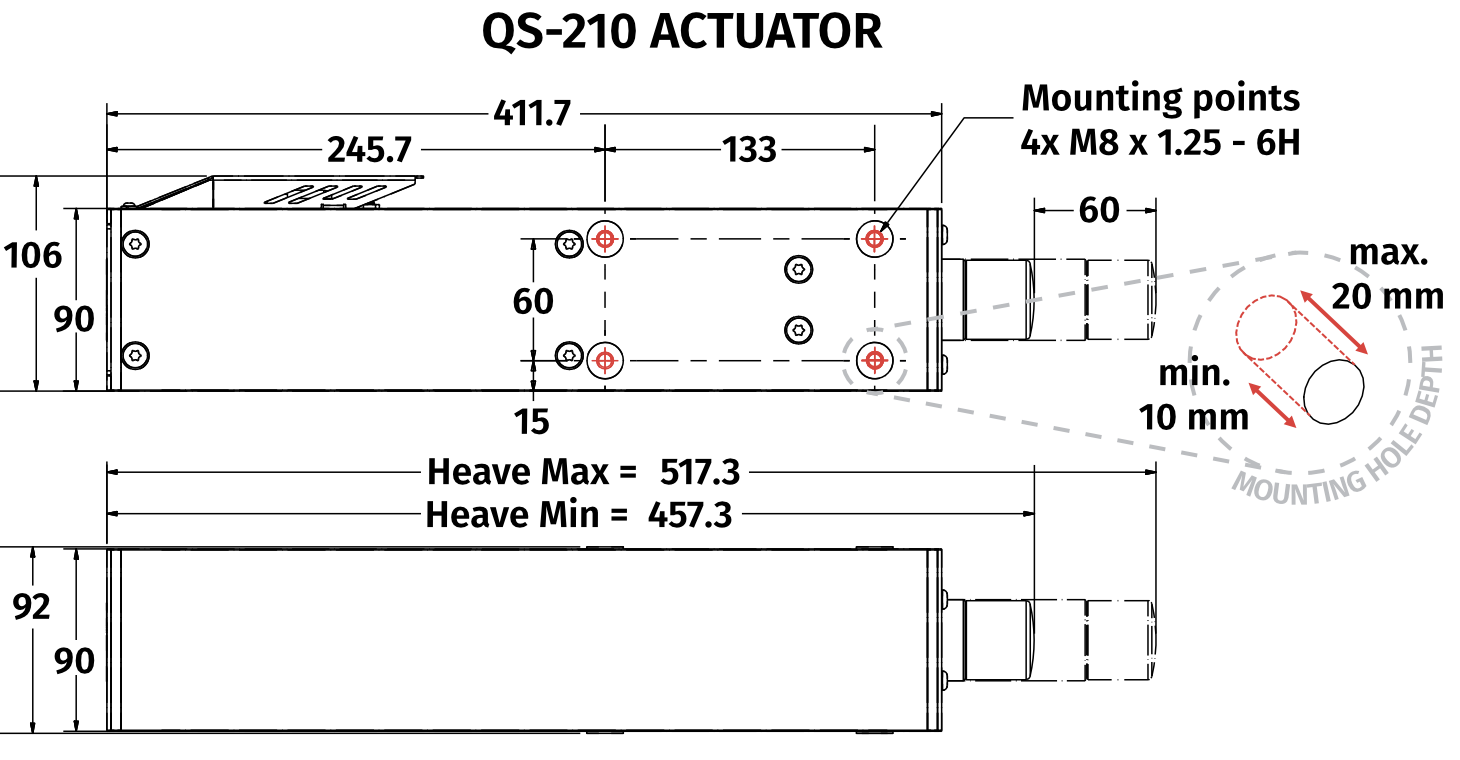

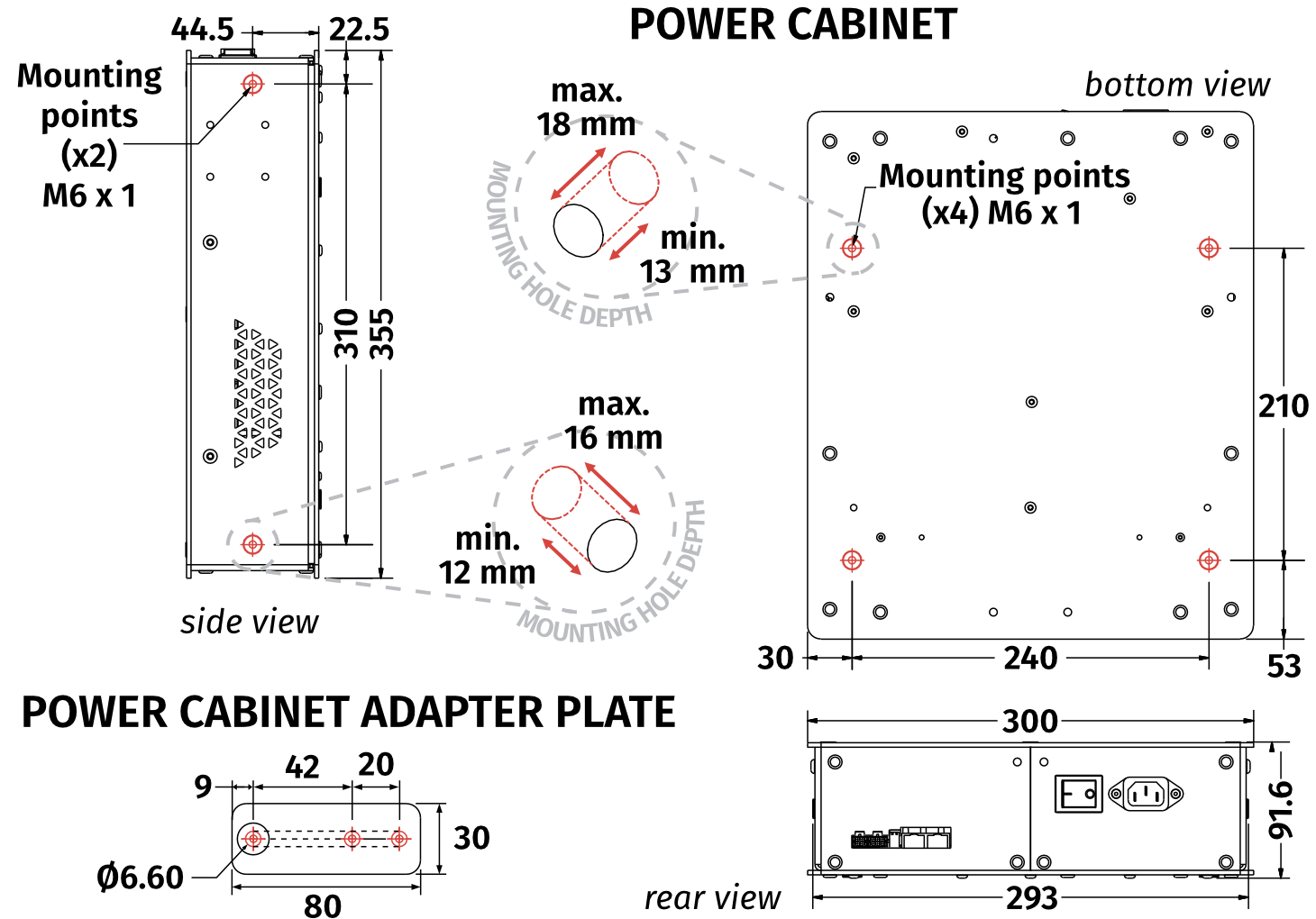

2.3 Dimensions

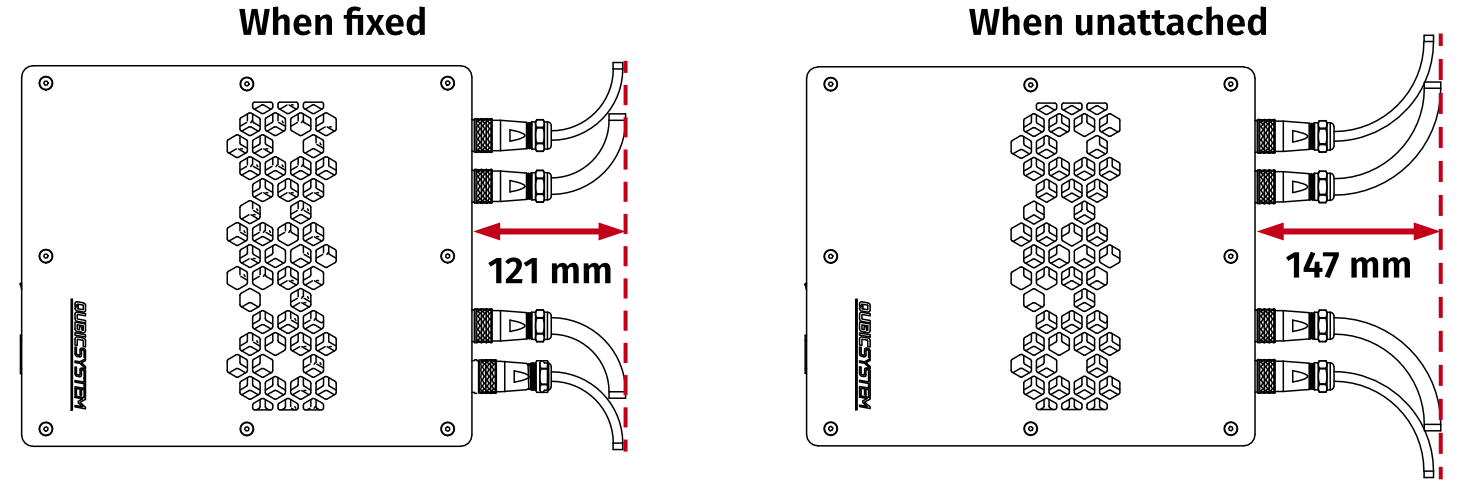

QS-210 'S cables length

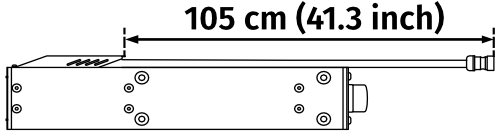

Actuator's cables length is 105 cm (41.3 inch):

Image: weipu_cable_length.png

QS-210 distance to the ground

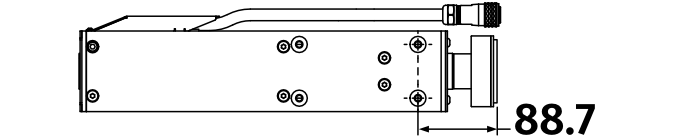

The distance from the bottom mounting hole to the ground with the actuator rod retracted, including a Stabilizing pad, is 88.7 mm.

Image: distance_to_ground.png

2.4 Power requirements

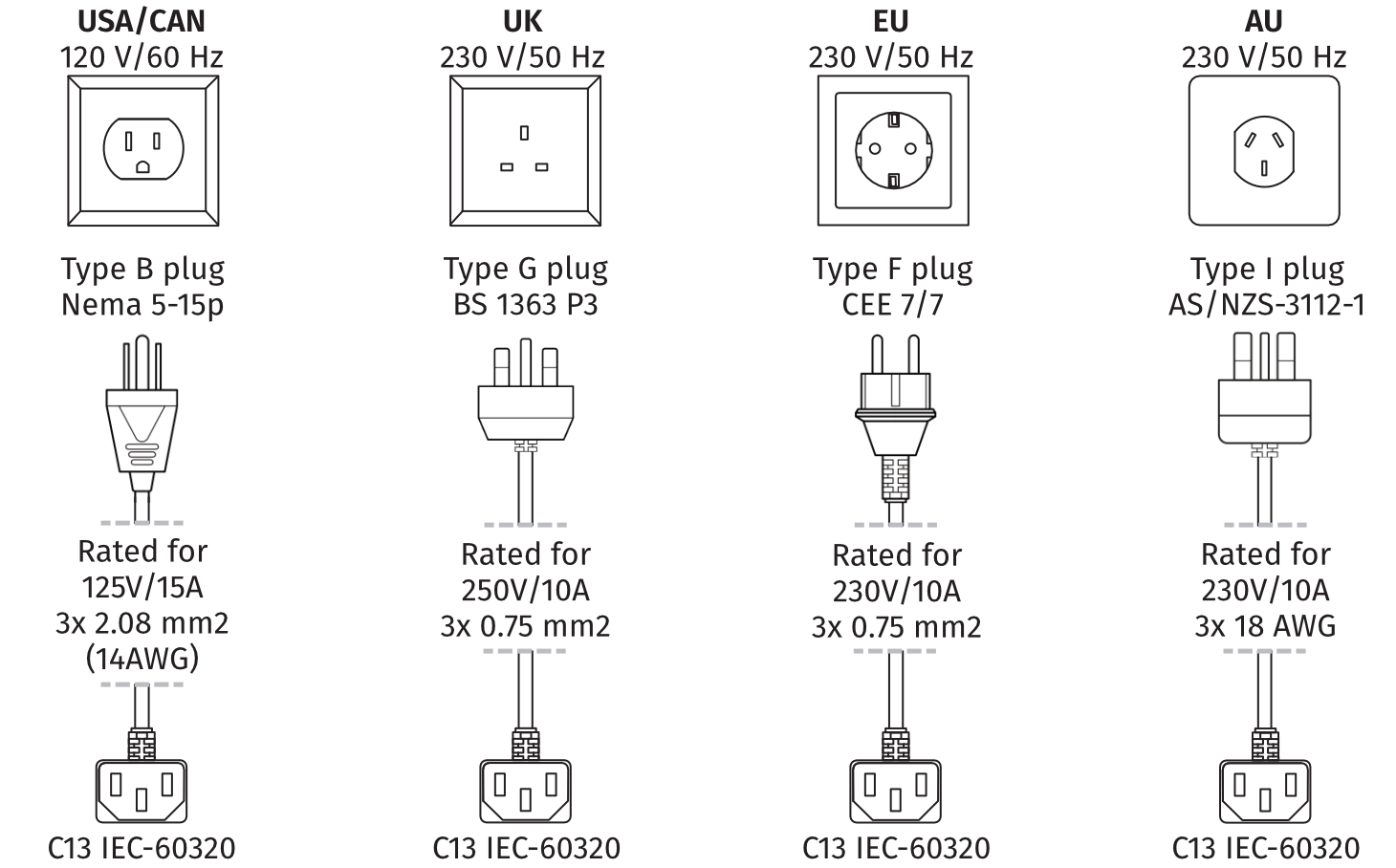

QS-210 requires a 120/230± 10% VAC 50-60 Hz single phase with ground and neutral connection. If you experience issues such as unexpected shutdowns or resets during simulation, it is recommended to inspect the power cables and power source. The use of cables that do not meet the specified requirements may lead to malfunctions. To ensure proper device operation, replace any non-compliant cables with ones that meet the required specifications.

2.5 Power consumption

Tables below contain power consumption data for QS-210 3DoF setup: Be aware that with heavy payload and/or more intense simulations average power consumption may rise.

2.6 Performance

Table below contains maximum payload and performance data for QS-210 3DoF setup:

2.7 Environmental conditions

The QS-210 should be operated within ambient conditions as specified below:

• Indoor use and storage only
• Temperature: 5^° - 40^° Celsius / 41^° - 104^° Fahrenheit
• Humidity: 0% - 70% (without water vapor condensation)
• Maximum altitude: up to 2000 m / 6561 ft

2.8 Cold start procedure

For safety reasons, and in strict compliance with the requirements of ISO 14118:2017 (E) concerning the prevention of unexpected start-up, QS-210, QS-220, QS-V20, QS-CH2, and QS-S25 motion systems require one complete cycle of the Motion Lock switch whenever power is restored after being cut off or during the start-up. Follow the steps below:

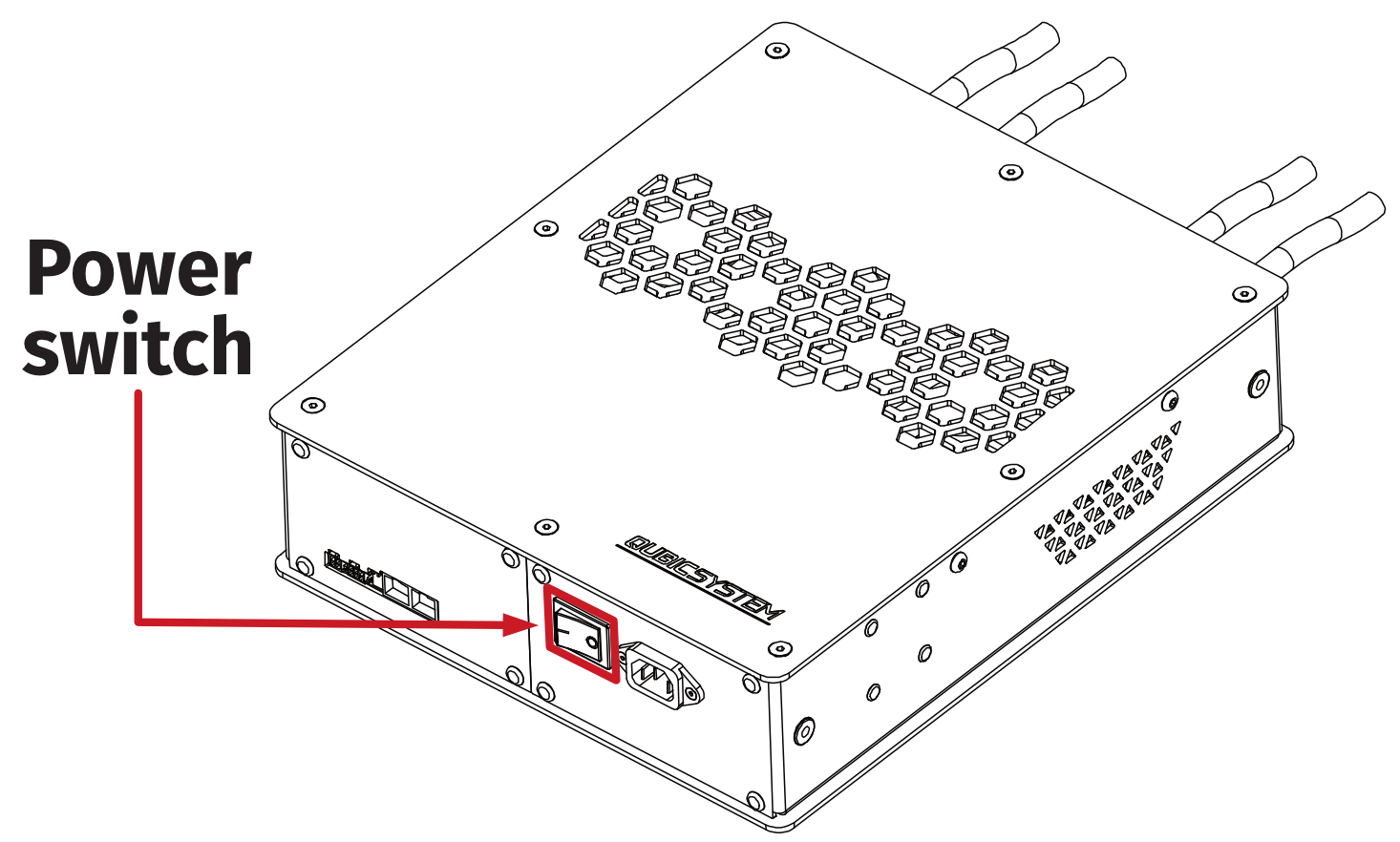

1. Verify that the motion platform is OFF - the power switch on the Power Cabinet is not backlit, and QubicManager displays an Offline status.


   Image: qs_motion_lock_cycle1.png
2. Turn the Power ON. The platform will not move.


   Image: qs_motion_lock_cycle2.png
3. Press the Motion Lock button - diode emits constant light. The platform will not move.


   Image: qs_motion_lock_cycle3.png
4. Turn the Motion Lock button counterclockwise - diode blinks. The system will perform start-up calibration. Do not change the payload.


   Image: qs_motion_lock_cycle4.png

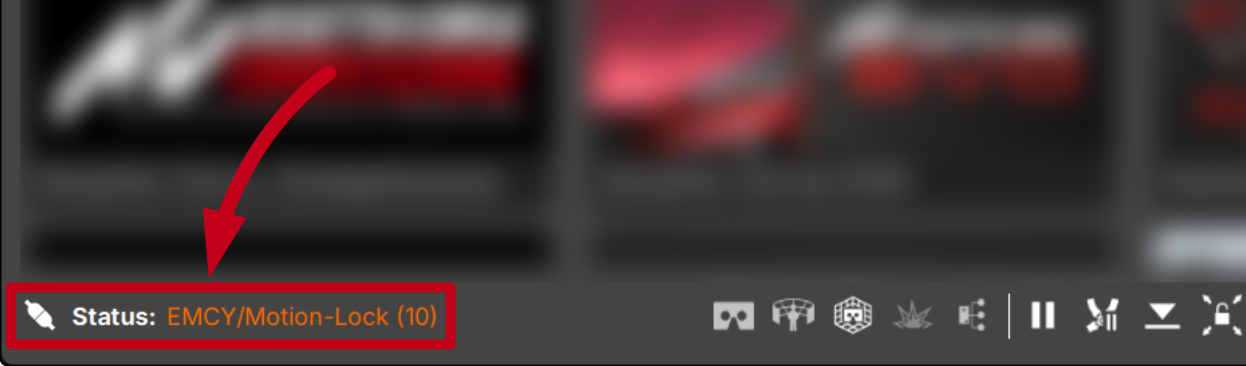

5. If the status displays Parked/centered or Running - the motion platform is ready for operation.


   Image: qs_motion_lock_cycle5.png

3 Accessories

3.1 QS-Pivot

QS-Pivot bar enables you to run a 2DoF setup - two linear actuator on the back or on the front of the platform. It can be bolted to the bottom of the aluminum frame using included hardware. The adjustment range is presented in section 3.1.4.

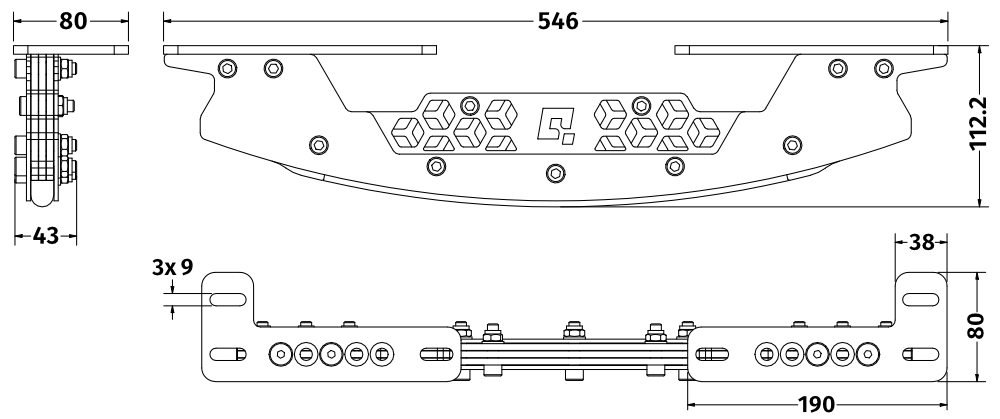

3.1.1 Dimensions

3.1.2 QS-Pivot components

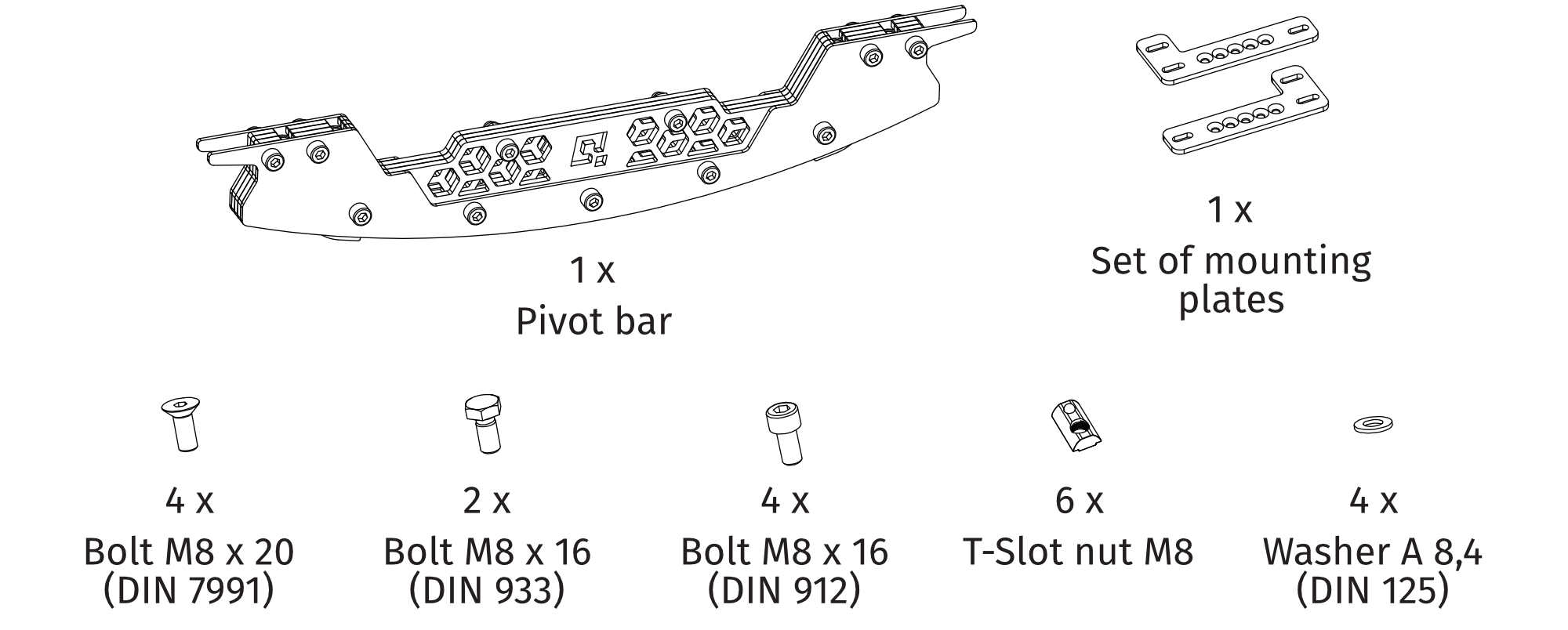

Included in the QS-Pivot box:

3.1.3 Mounting to an aluminum profile cockpit

Use all of the included hardware to mount the QS-Pivot bar according to the pictures. QS-Pivot bar is to be installed to the underside of the aluminum profile. It can be installed either on the front or back of the cockpit - depending on your setup. QS-Pivot bar can be moved closer to center of the rig to increase pitch movement but it MUST be installed to a crossbeam to increase stiffness. If there is no crossbeam in the preferred installation spot - it MUST be added.

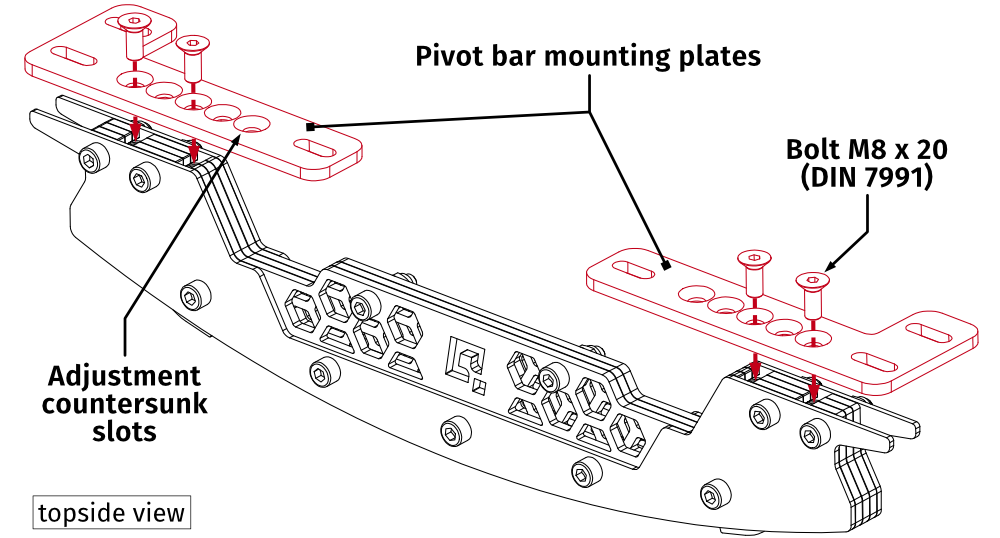

1. Mount the installation plates to the QS-Pivot bar at a width that matches the cockpit. Mounting plates are not interchangeable because of countersunk holes - DIN 7991 bolts must sit flush inside them, when screwed in from the top.


   Image: pivot_bar_mounting1.png
2. Screw the QS-Pivot bar in under the cockpit using included bolts.


   Image: pivot_bar_mounting2.png
   Info

   Use small amount of medium strength thread locker on all bolts.

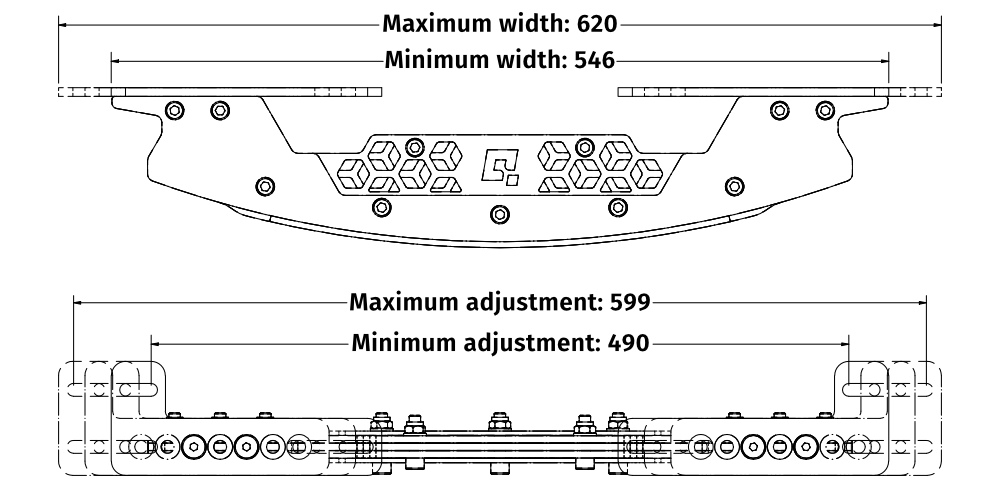

3.1.4 Adjustment dimensions

For adjustment dimensions refer to the illustration below:

3.1.5 Correct installation guidelines

It is possible that incorrect installation of 2 front actuators + QS-Pivot at the back may cause undesired cockpit behavior — during dynamic weaving of a high-downforce/high-grip vehicle, the actuators may lose contact with the actuator feet (bounce off the ground). Preventing actuator bouncing is crucial for user safety and for maintaining the durability of the motion platform's mechanical components. What hardware-related conditions increase the possibility of actuators bouncing off the cups/feet?

• Actuators mounted too close together — excessive roll motion range resulting in a worsened side to side stability
• Racing seat mounted directly over the QS-Pivot and actuators mounted too far from the user — insufficient weight over the actuators
• Front actuators + rear QS-Pivot setup - for better stability, front QS-Pivot + back actuators setup is preferred

What software-related conditions increase the possibility of actuators bouncing off the cups/feet?

• Highly dynamic weaving in vehicles with significant downforce or grip capabilities (e.g., open-wheelers, single seater hyper- or sports-cars, GT racing cars)
• Ideal tire and track conditions resulting in maximum grip
• Direct-drive steering base set to maximum force feedback, reduced damping, and increased inertia — this may cause steering wheel oscillations at high speed
• High-speed crash with the Violent Movement Suppressor effect disabled in QubicManager software

What steps must be taken to minimize the risk of actuator bouncing off the cups?

• DO NOT mount the actuators too close to each other — mount them on the side beams of the cockpit, not at the front
• Consider using included flat face profile mounting adapters to space out the actuators. Go to section 4.2.2 for details

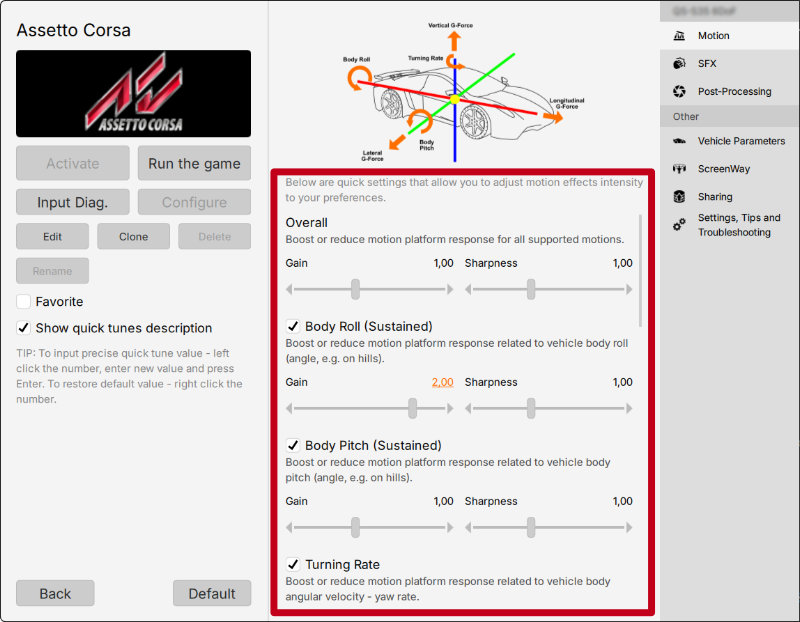

• In high downforce/grip vehicle scenarios — reduce the Overall Gain slider value or decrease the Lateral G-force and Side Slip effects gains
• NEVER disable the Violent Movement Suppressor effect in the SFX tab by decreasing its sliders
• DO NOT mount the seat directly over or behind the QS-Pivot — this will not only reduce the risk of actuator bouncing but also improve the overall motion sensation for the user

Image: correct_pivot_2dof_installation.png

• Seat directly over the QS-Pivot - unwanted inertia Actuators in front - underloaded Too close to each other - too much roll for safe operation

• Seat moved forward - corrected weight balance Widened actuators mounting - more stable Too far away from user - underloaded

• Seat moved away from QS-Pivot - improved weight balance Actuators closer to user - more heavily loaded Added wider adapters for stabilization - info in section 4.2.2

4 Setup and installation

4.1 Before installation

Qubic System DOES NOT approve exceeding or ignoring any of the points below and IS NOT responsible for malfunctions, failures or injuries that are results of these actions. Before installing the actuators to a cockpit, actuator feet must be screwed in:

4.2 Installing QS-210 to an aluminum profile cockpit

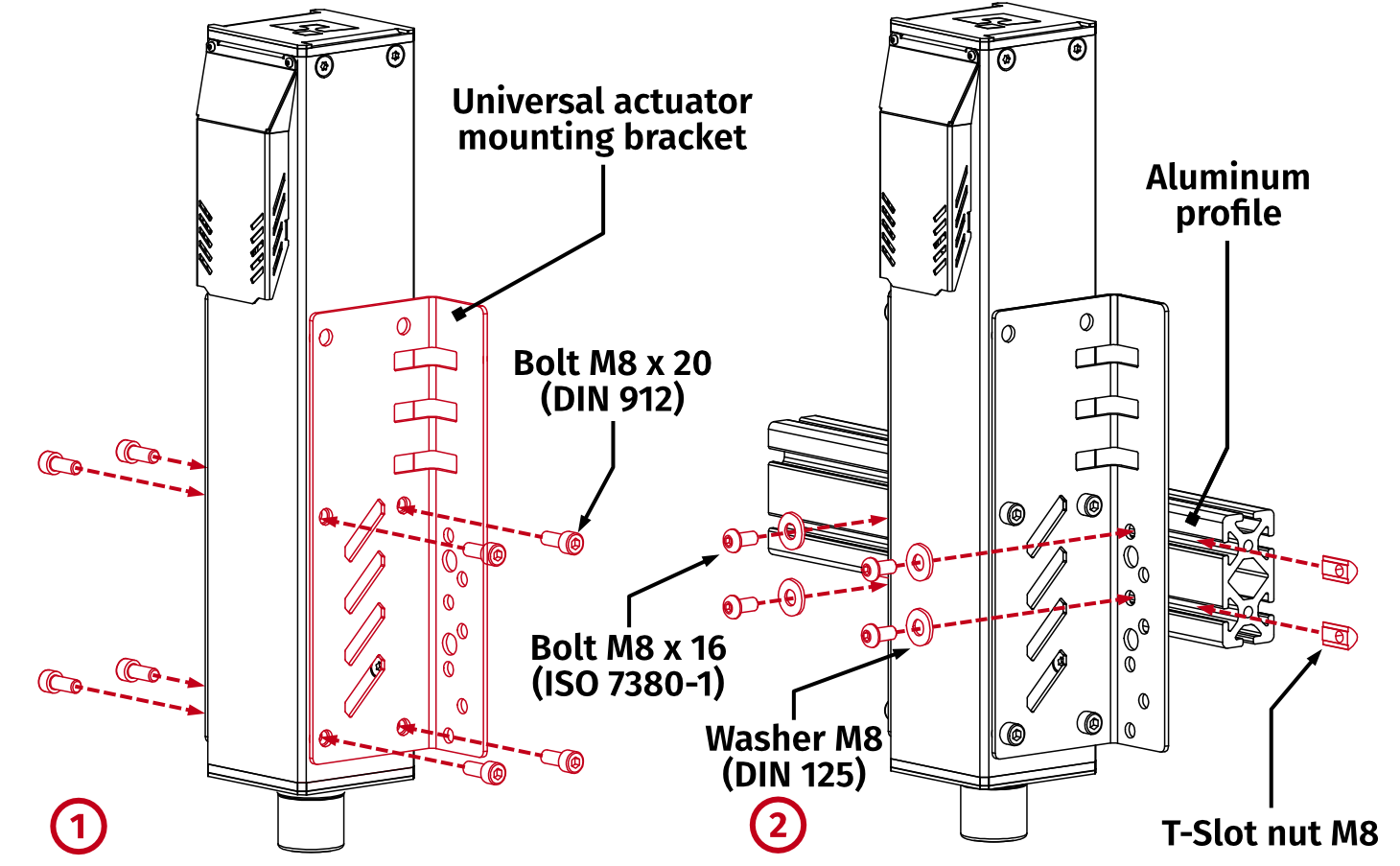

• Actuators MUST BE connected with the mounting brackets with 8 bolts (M8x20) each.
• Mounting brackets MUST BE connected with user's cockpit with 4 bolts (M8x16) each.
• Power Cabinet has to be mounted to cockpit using at least 4 bolts (M6x16) – we recommend mounting it in the middle of the motion rig. It is possible to mount Power Cabinets using the bottom or side mounting holes. Check section 4.2.3 for details.

Illustrations below shows an example applications of assembled motion cockpits – notice that actuators have to be perpendicular to the ground:

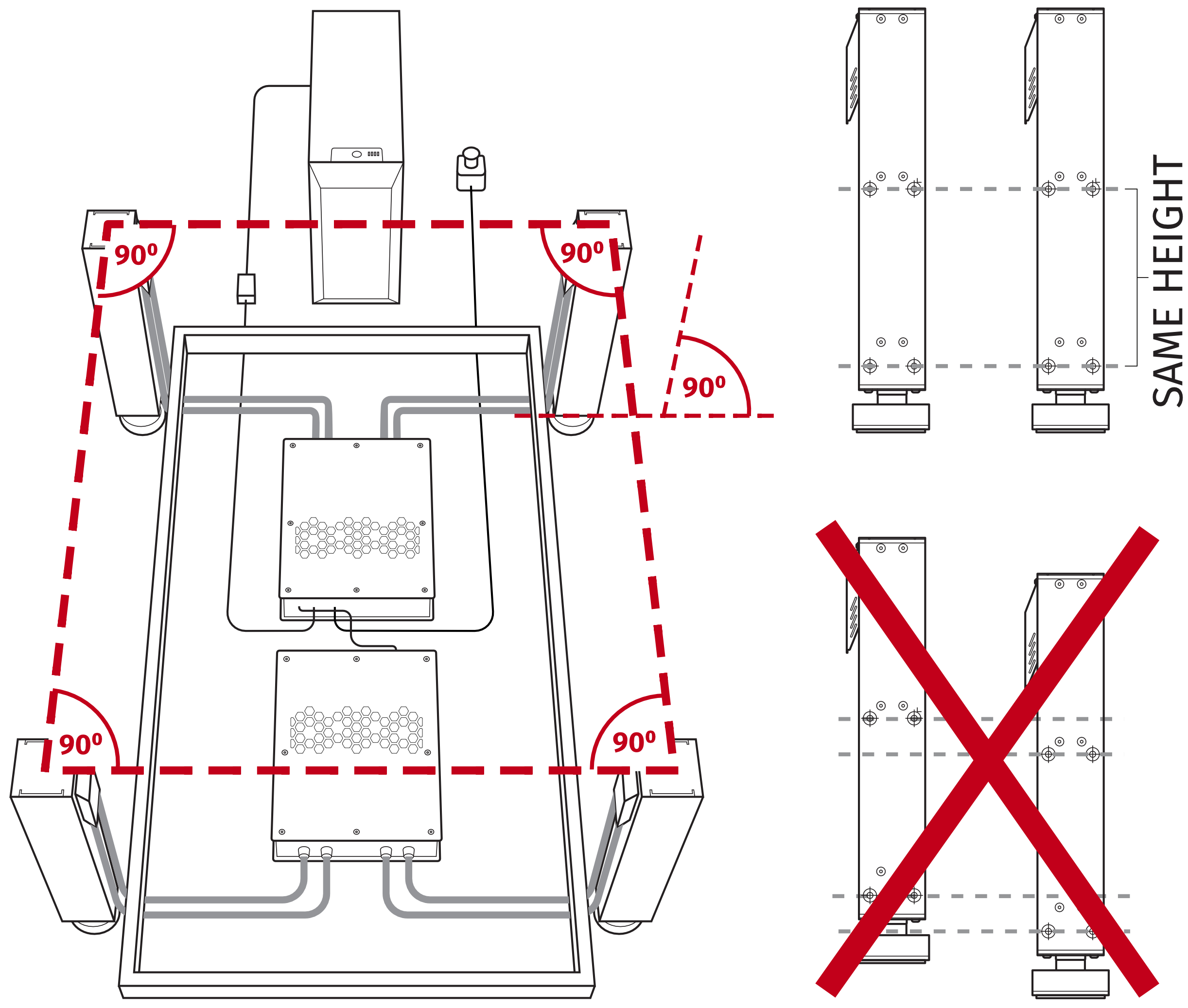

VARIANT 1: Parallel actuators setup

Image: 3dof-qs210_actuator_straight.jpg

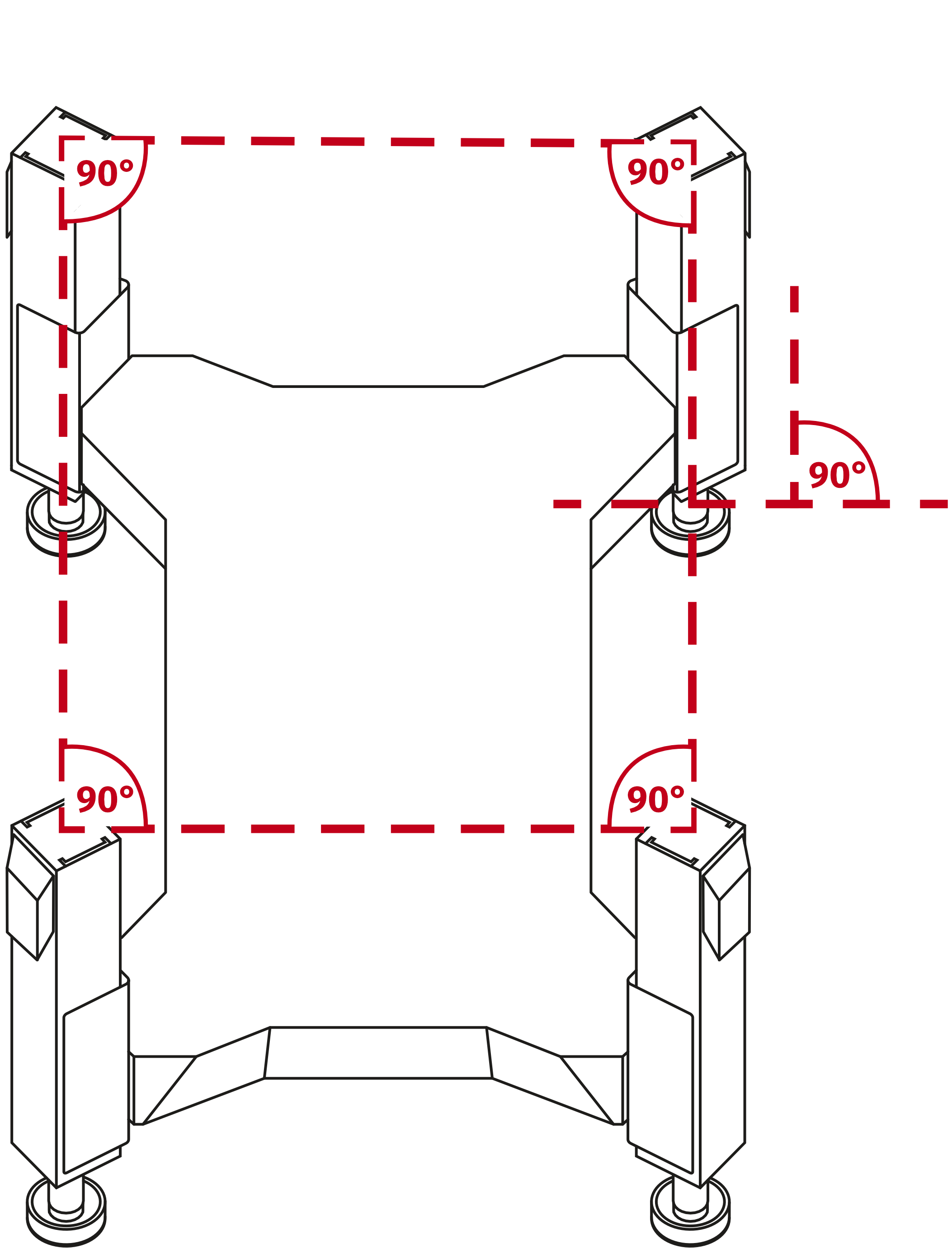

VARIANT 2: Diagonal actuators setup

Image: qs-210_actuator_diagonally.jpg

Ensure that the motion rig elements will not block air vents of the Power Cabinet. The minimum distance between the air vents and any part of the cockpit is 10 cm (4 in.).

4.2.1 Mounting QS-210 actuators

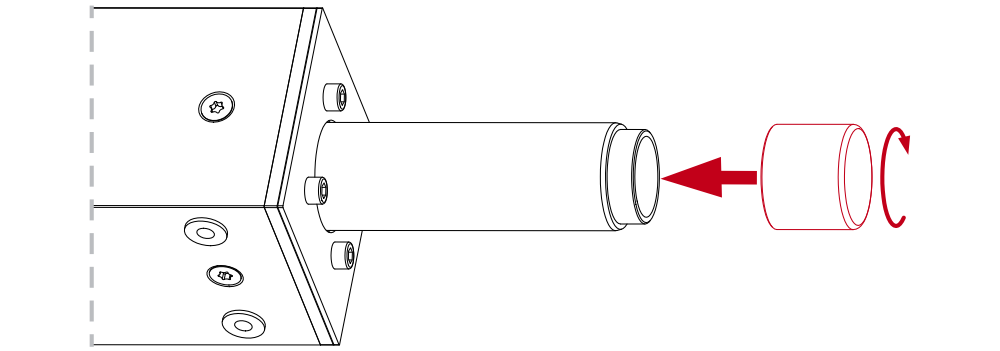

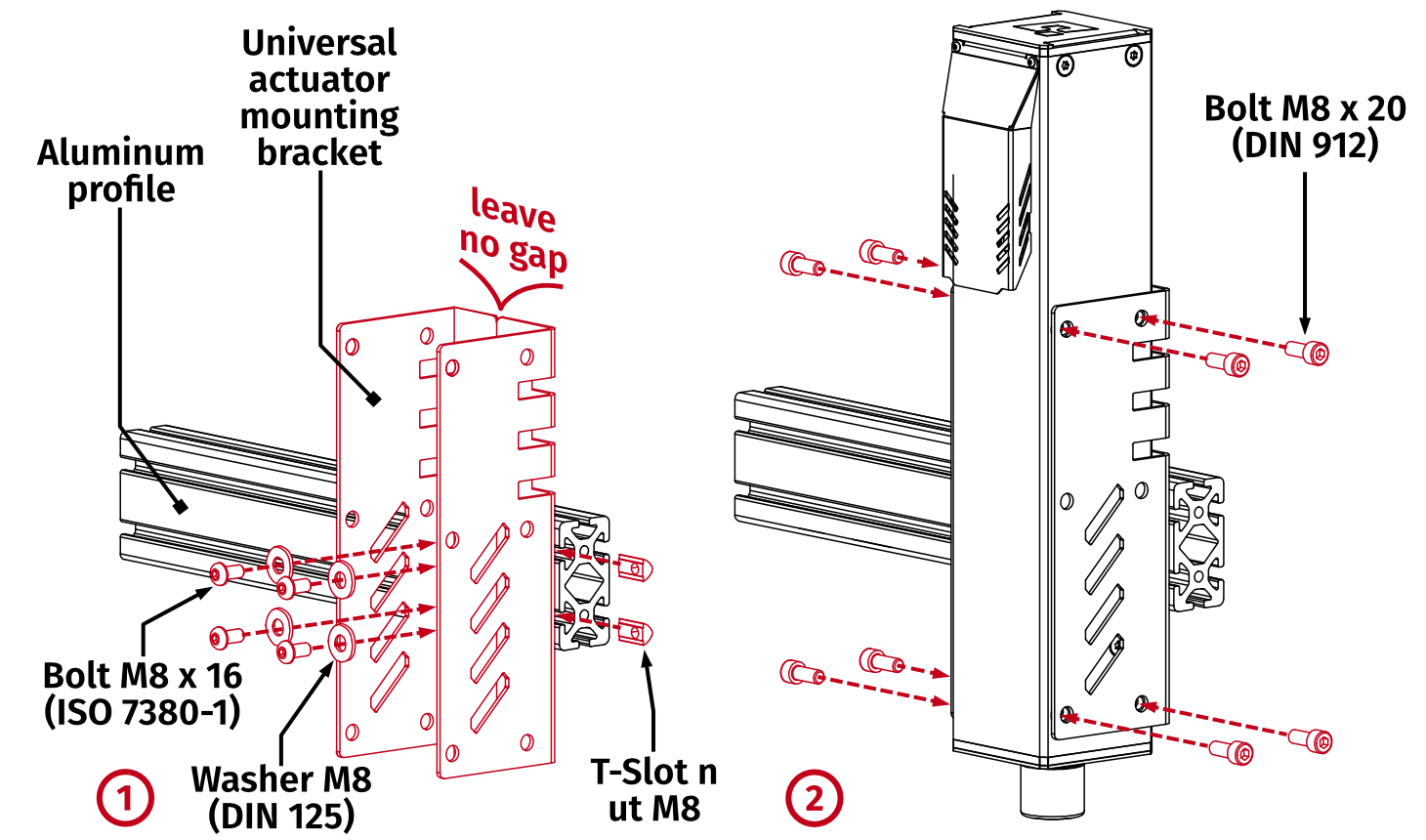

For best fitment - in 1st step install both mounting brackets as close together as possible.

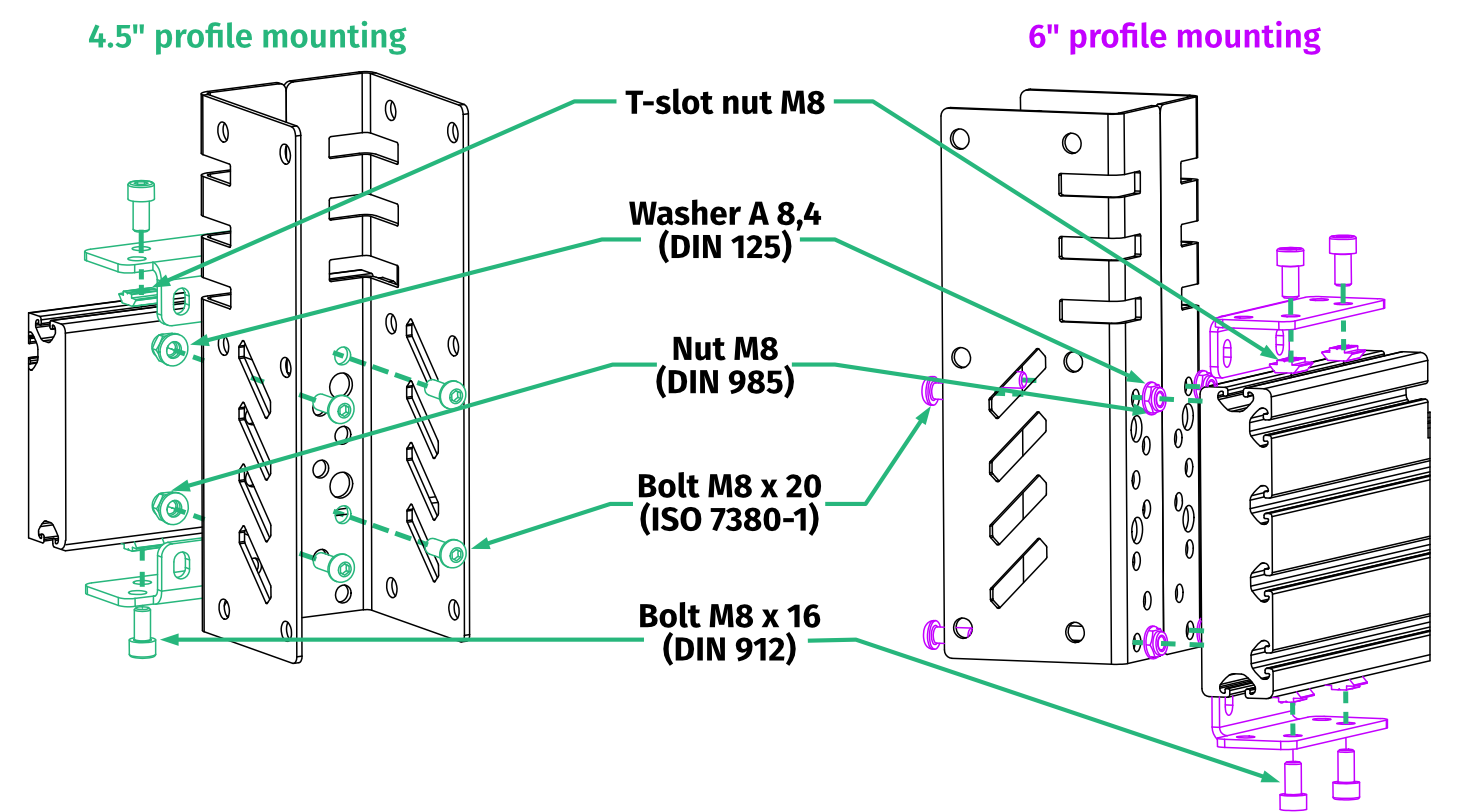

4.2.2 Mounting adapters for flat face profiles

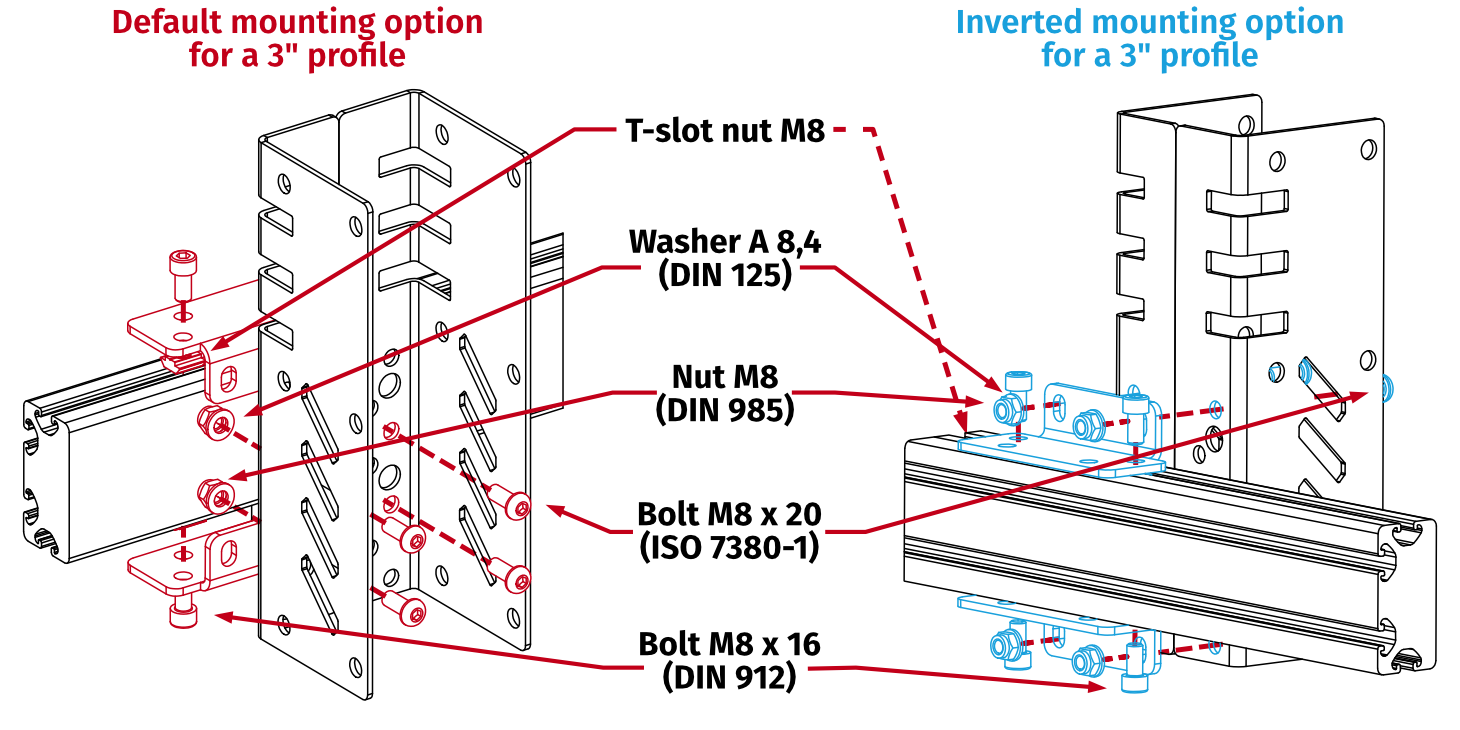

Included adapters can be used to mount the Universal actuators mounting brackets with flat face aluminum profiles. They can also be used on regular profiles to space out the actuator by 15 mm (0.59 in).

Illustration of a finished assembly with a flat face 3" aluminum profile:

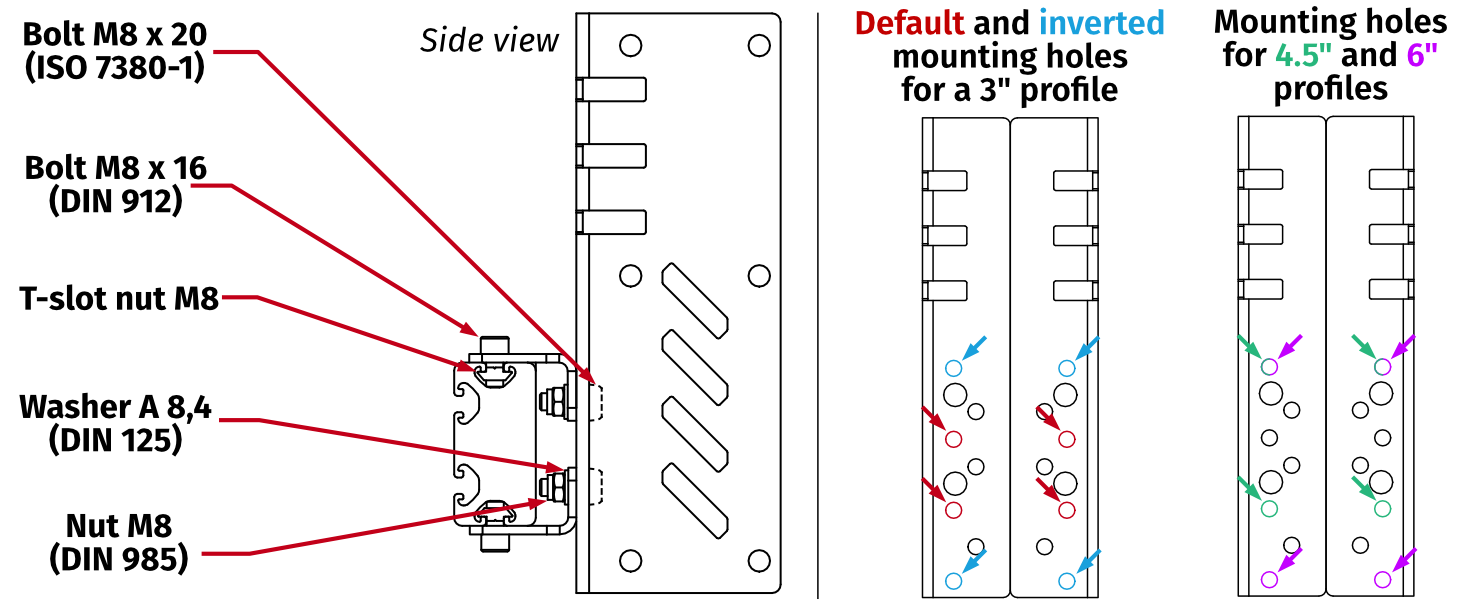

Mounting holes in different
configurations:

Installation with a 3 inch aluminum profile in two variants: Installation with a 4.5 and 6 inch aluminum profile: After the bracket mounting procedure is finished, mount the actuator according to second variant instruction from section Second variant.

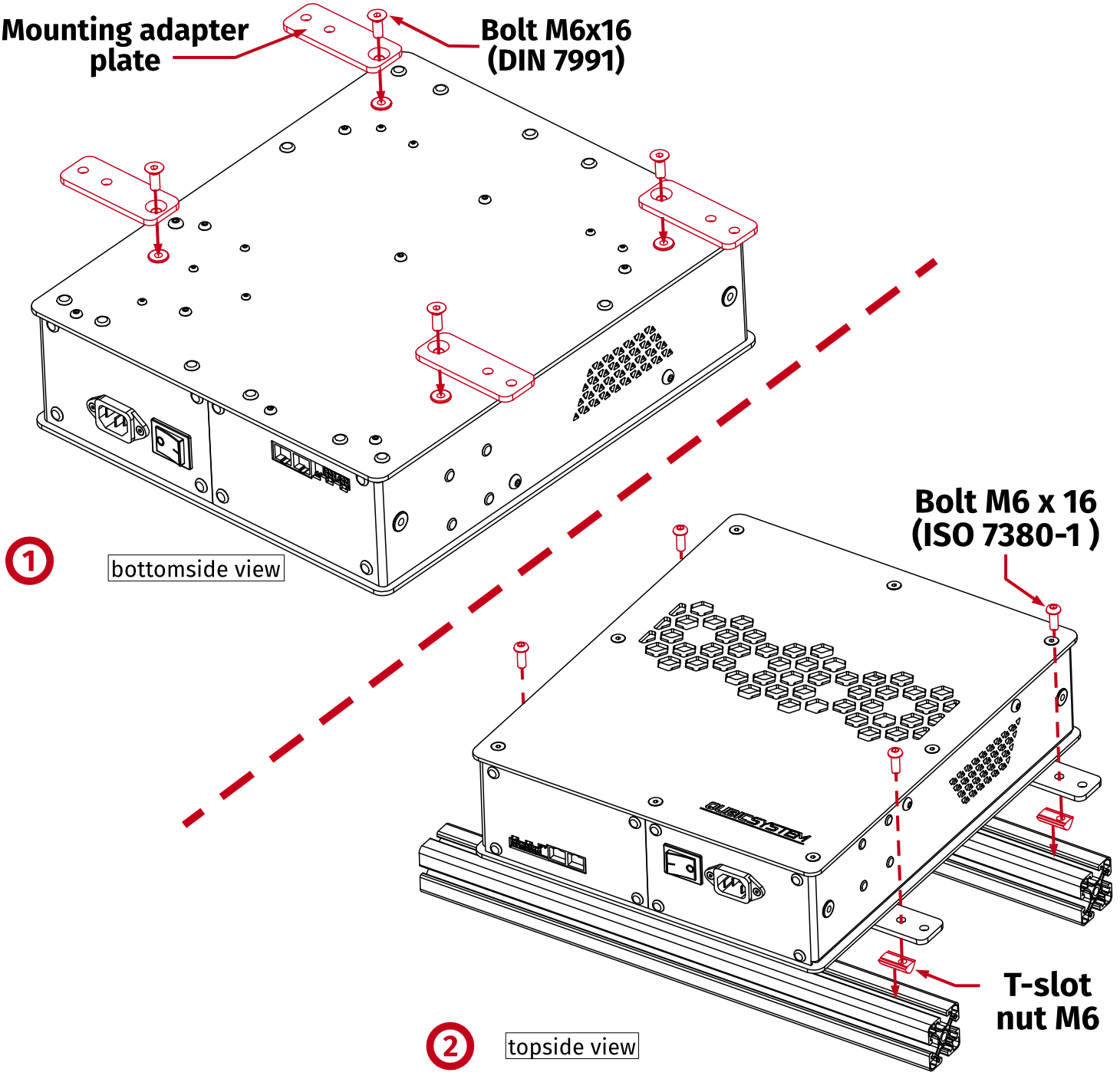

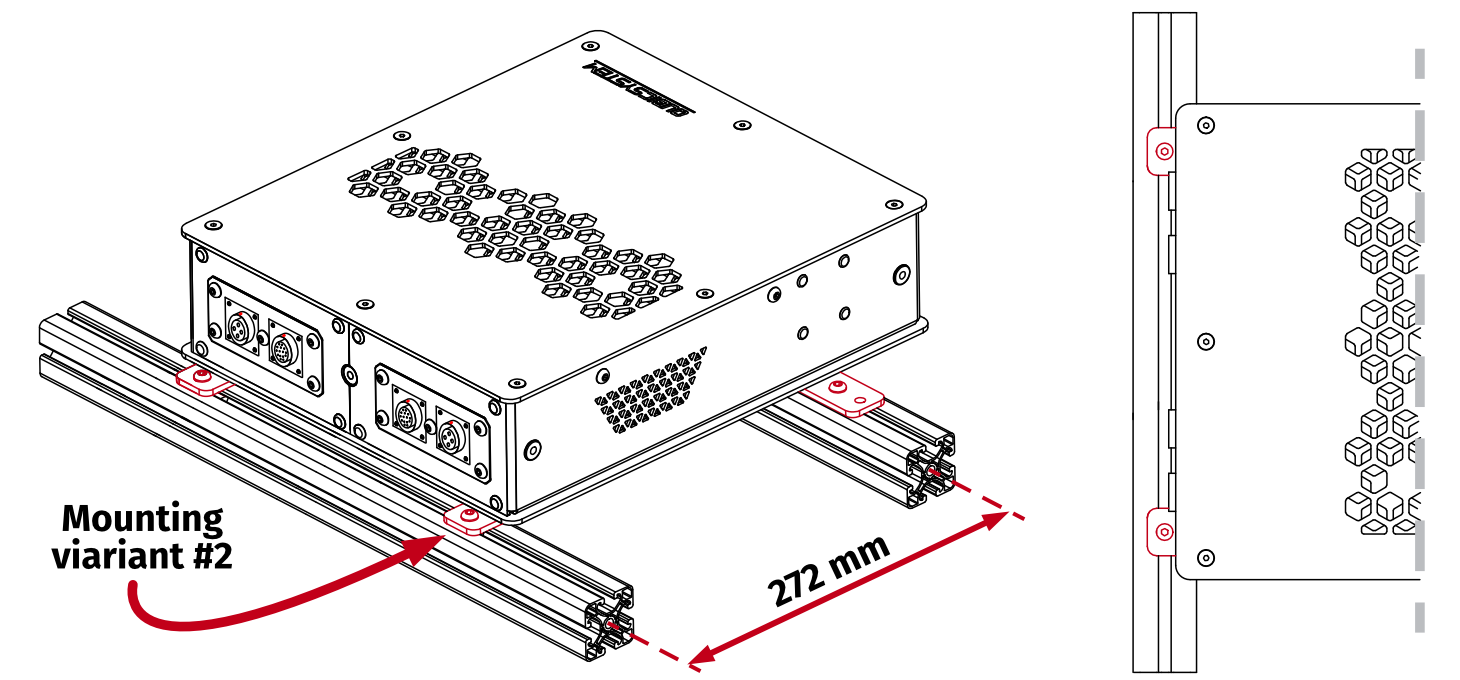

4.2.3 Mounting the Power Cabinet

Illustrations of Power Cabinet mounting to an aluminum based profile (profile 8) cockpit (space between two profiles must be 210 mm): Mounting variant no. 2 Use the outer holes in the adapter plates to mount the Power Cabinet to a profile that is further away (272 mm between the two profiles). Installation space The required installation space can be determined based on the Power Cabinet section Dimensions (page ). In space-constrained installations, angled plug power cords may be used; ensure they meet the specifications provided in section Power requirements (page ). When installing the Power Cabinet in the cockpit, do not exceed the allowable cable bend radius. The minimum distance between the rear wall of the Power Cabinet and the cable must be 121 mm if the cables are secured to the rig (no slack near the connector), and 147 mm if the cables are loose.

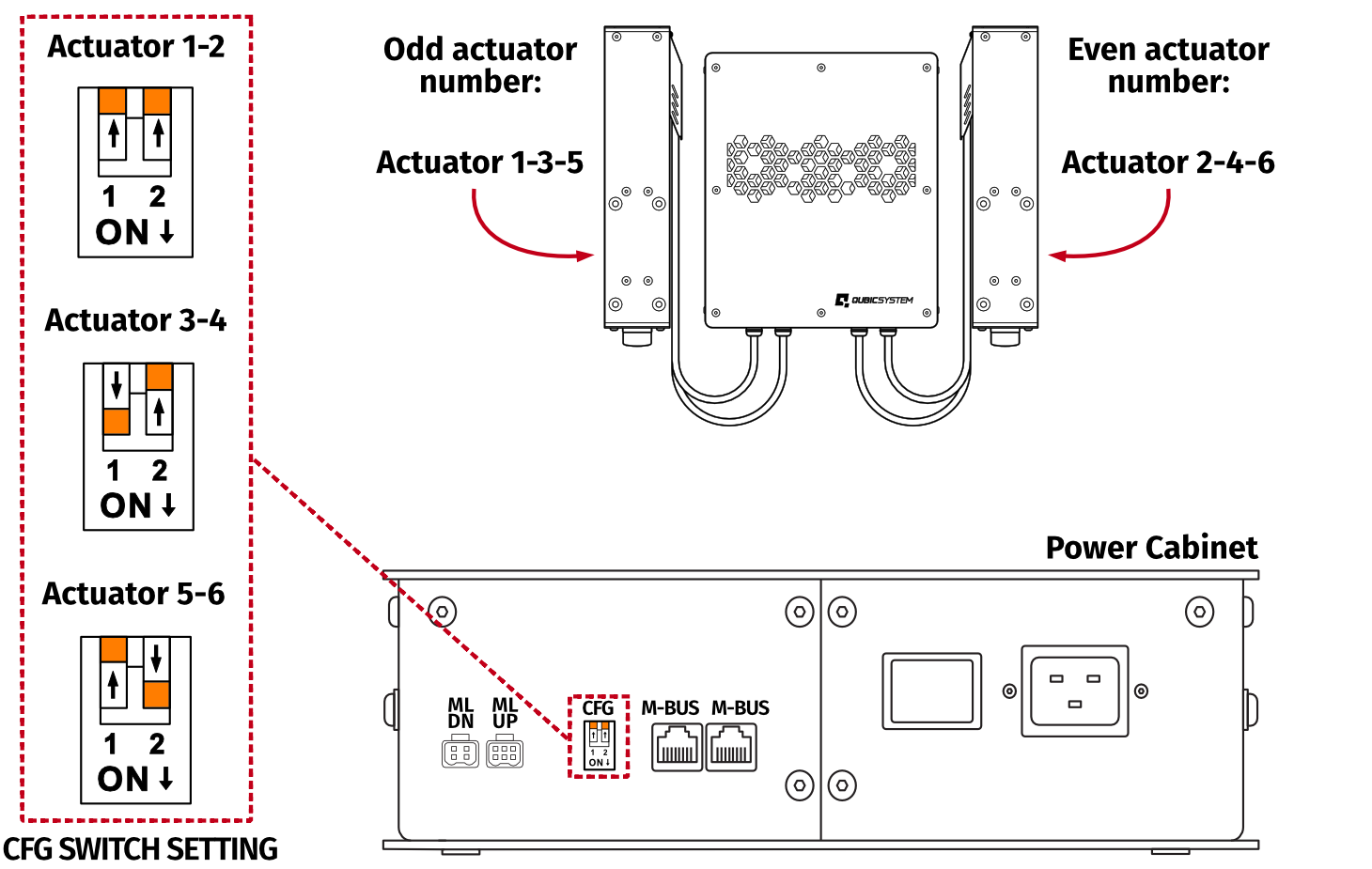

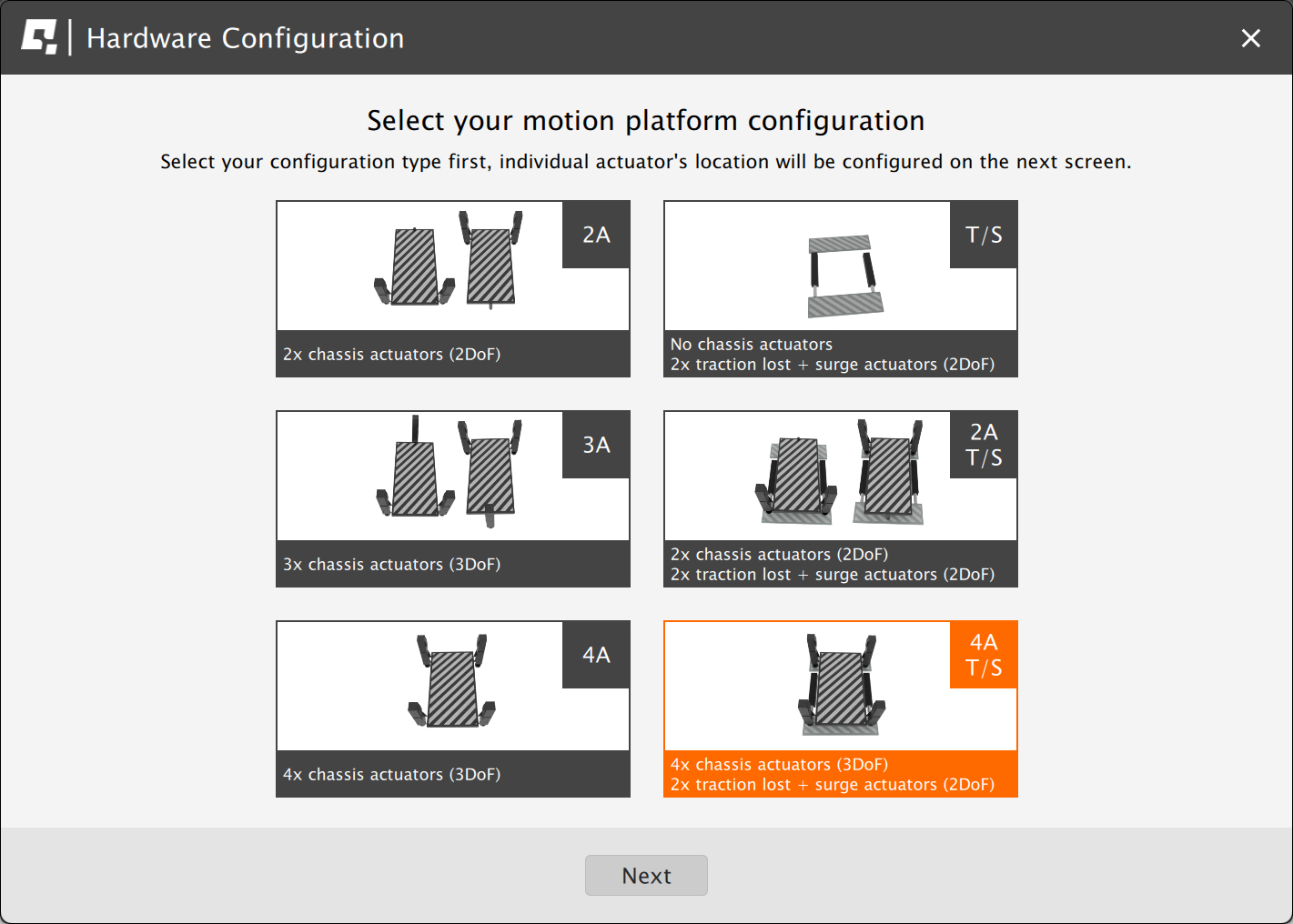

4.3 QS-210 CFG DIP switch configuration

The CFG DIP switch MUST BE set to an appropriate position. It specifies the actuator pair number (1-2, 3-4, 5-6, etc.). Refer to layouts (starting section 4.4) for 2DoF or 3DoF actuator numbers in a specific settings and set the CFG DIP switches accordingly. Refer to the photos below for the actual CFG switch positions to better understand diagram symbols:

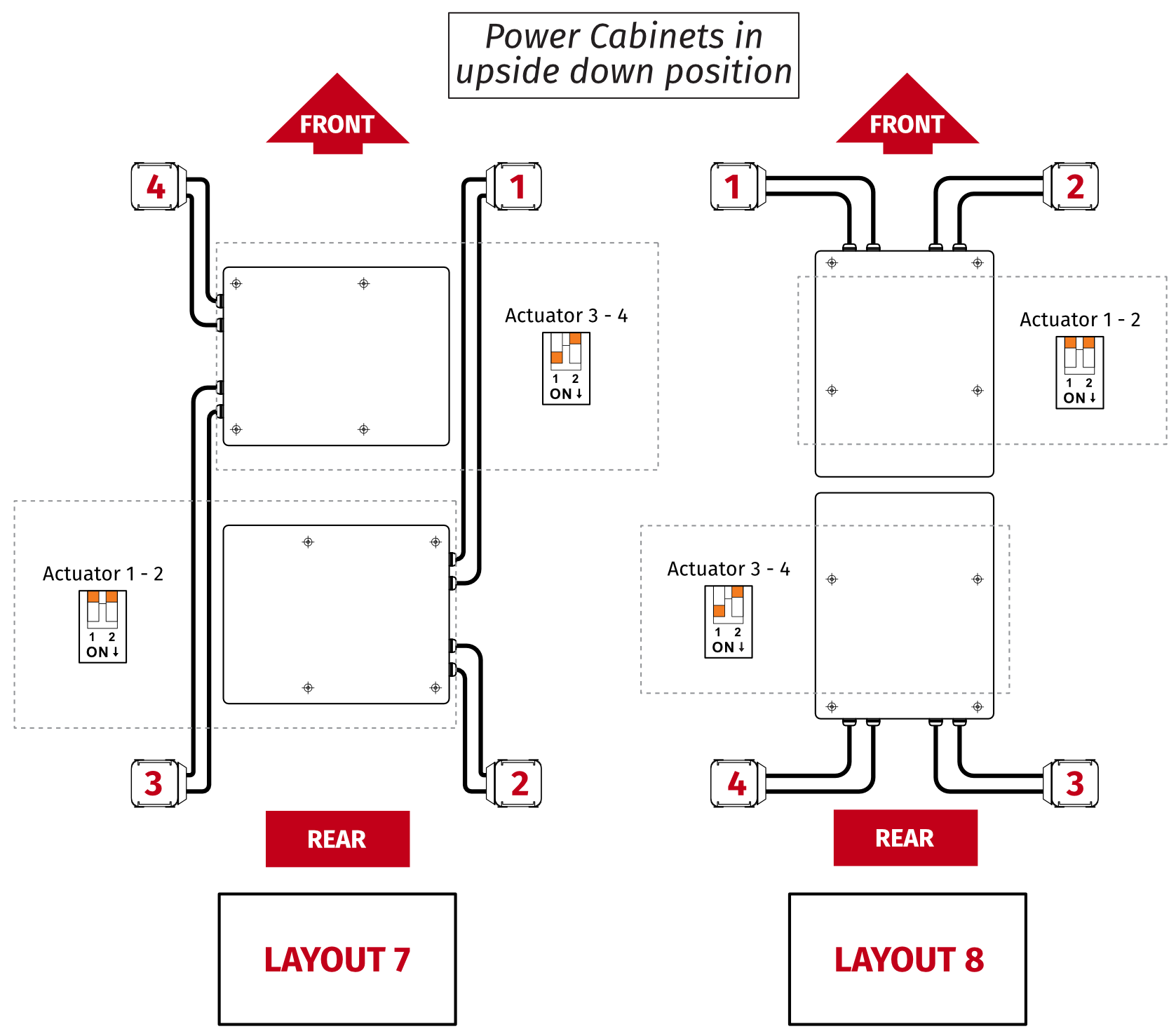

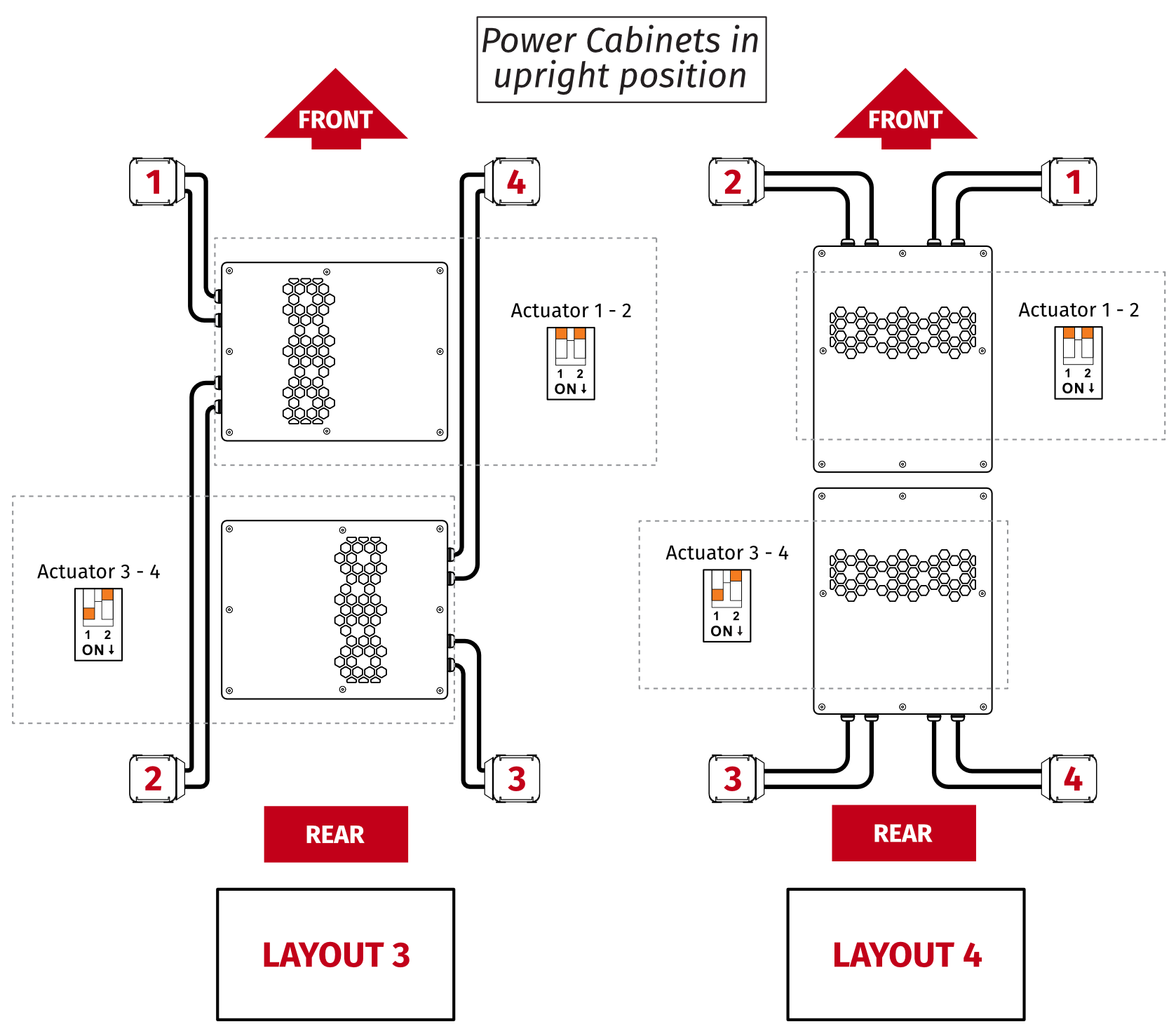

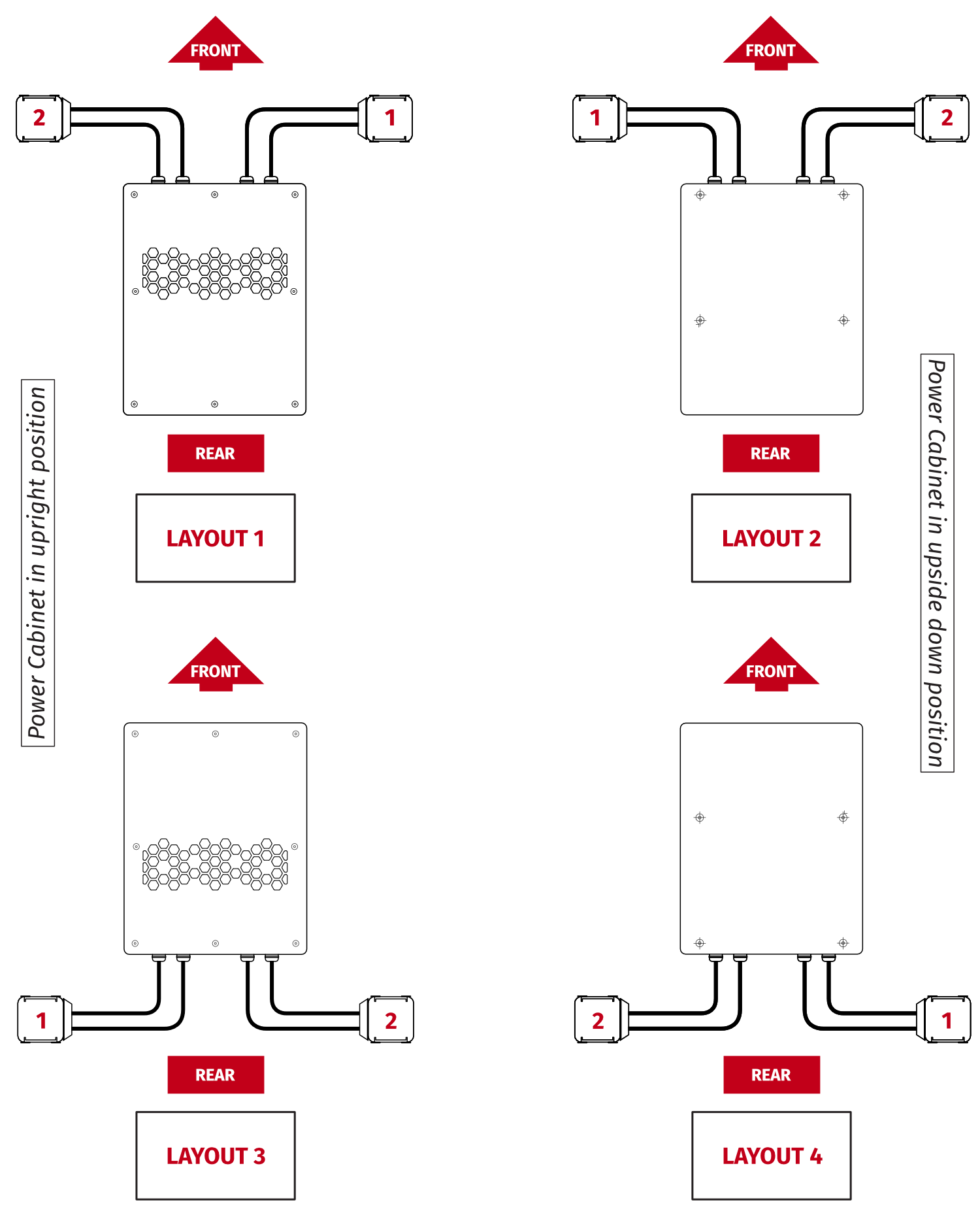

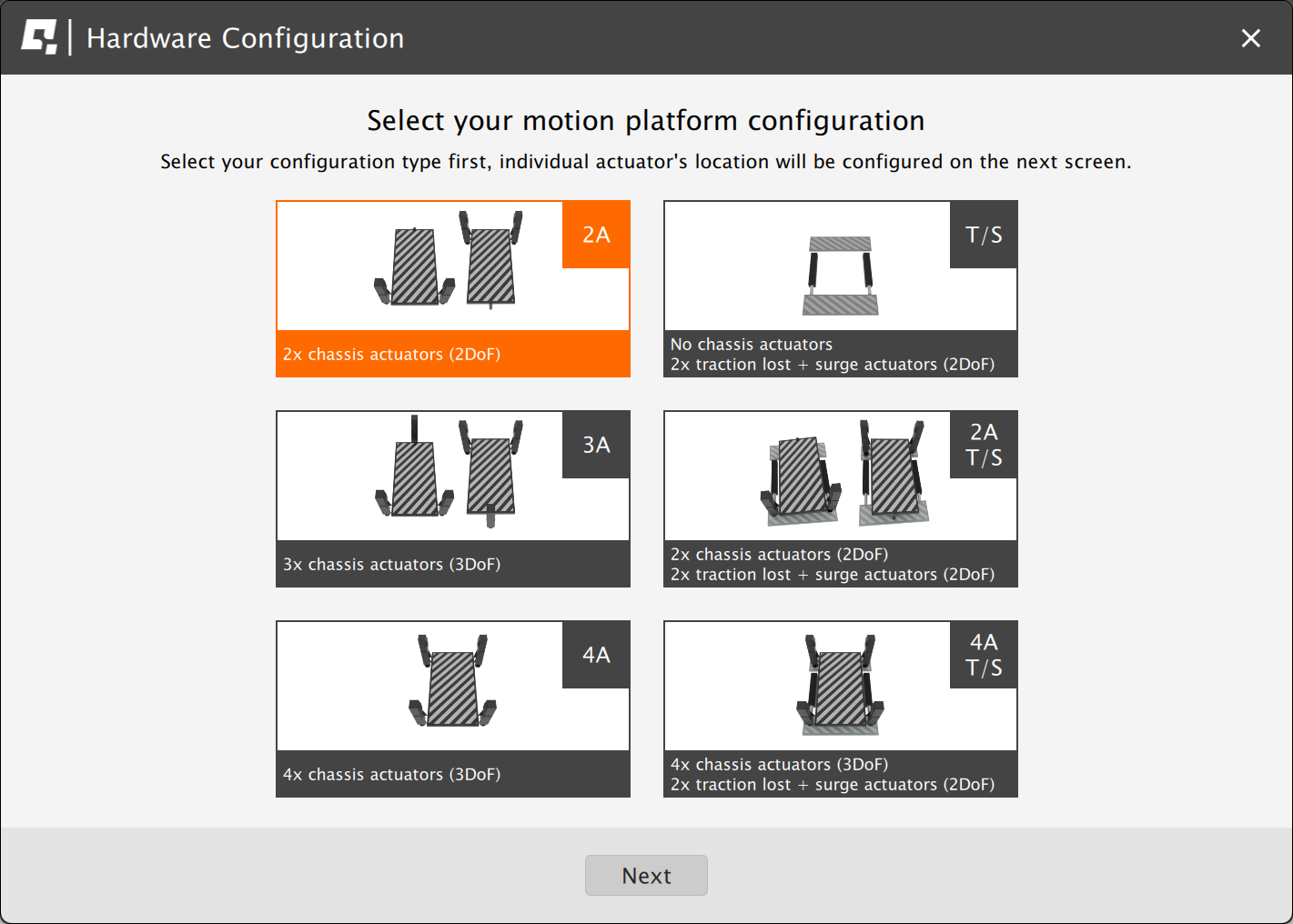

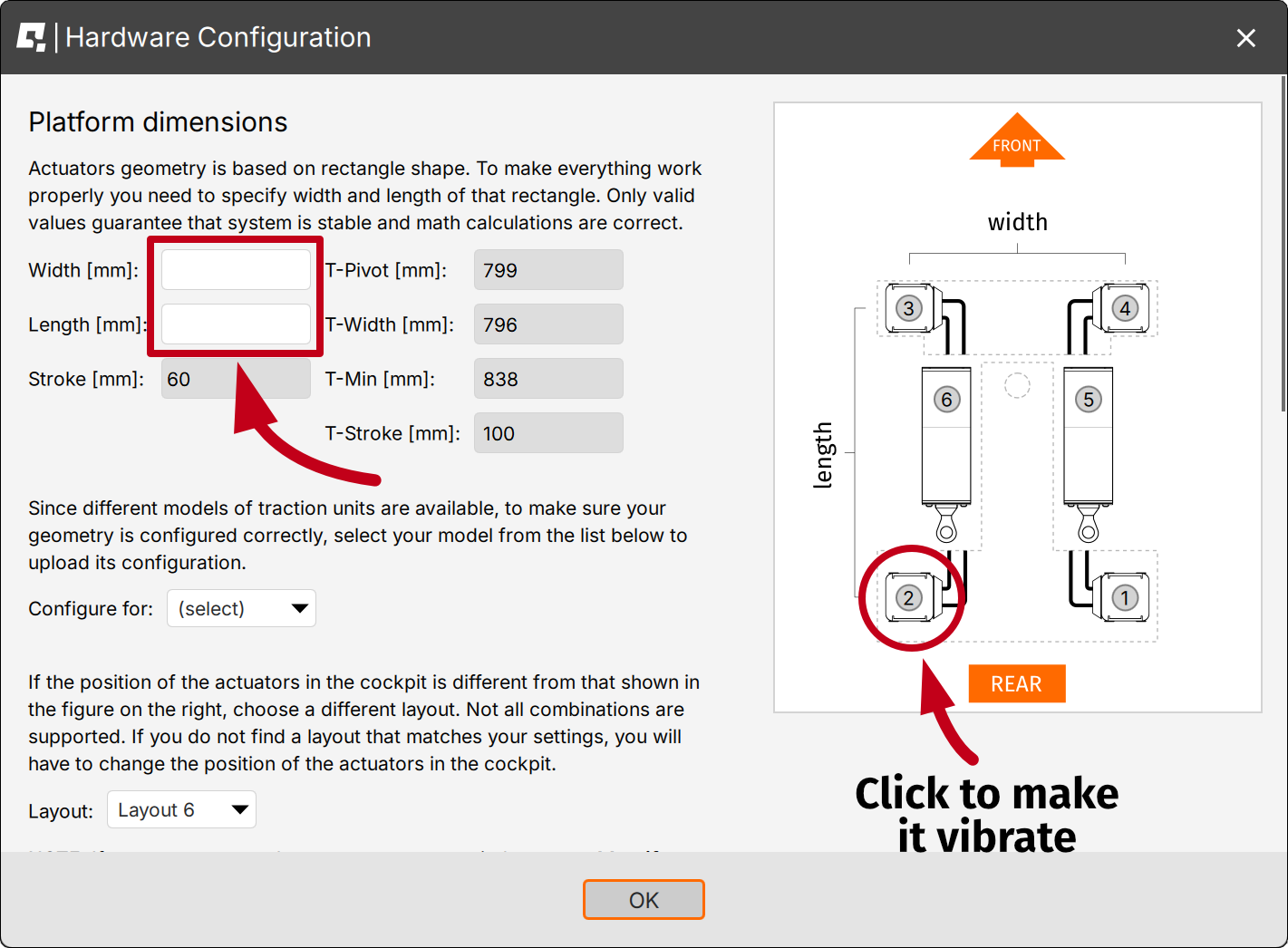

4.4 QS-210 2DoF layouts

Actuator pair number is defined by the CFG DIP switch on the Power Cabinet. For more information go to 4.3.

4.5 QS-210 3DoF layouts

Actuator pair number is defined by the CFG DIP switch on the Power Cabinet. For more information go to 4.3.

4.6 Actuator connection with a Power Cabinet

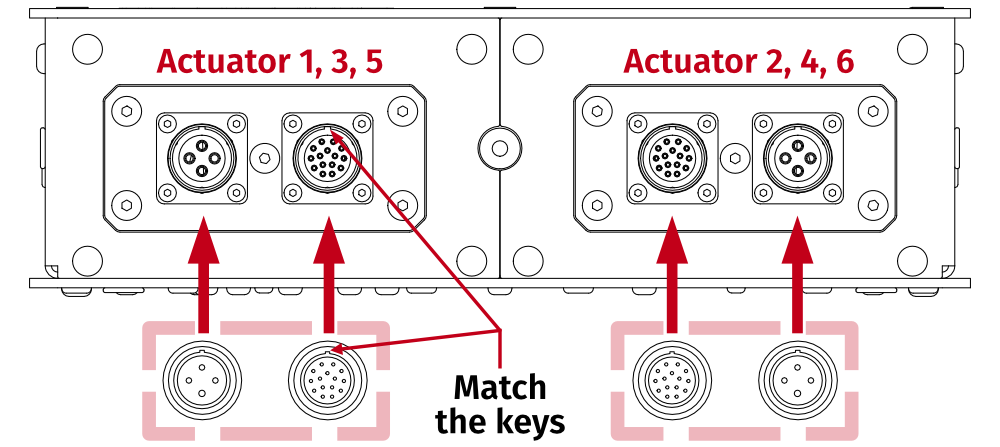

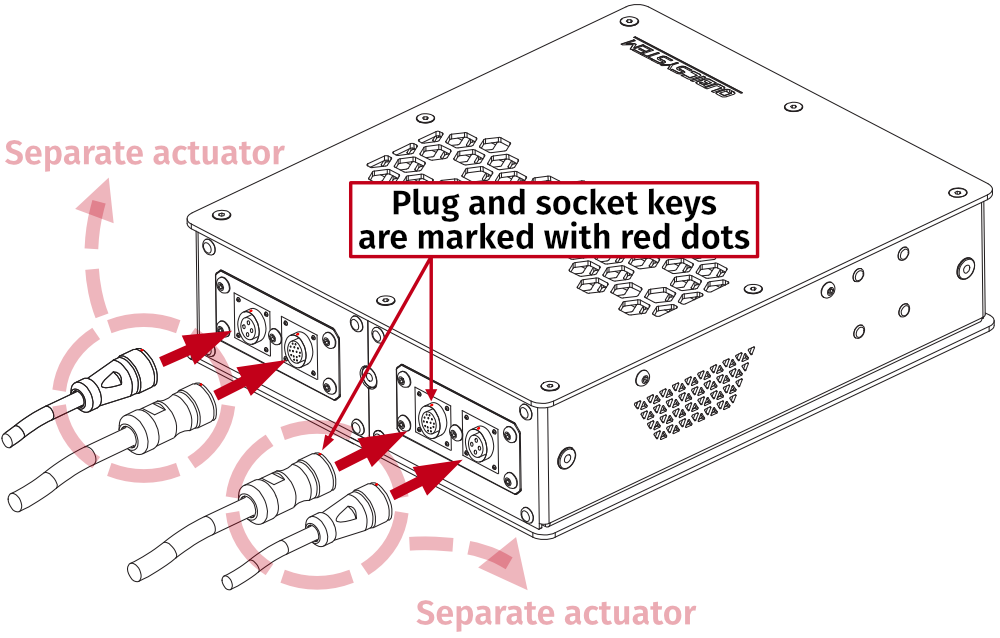

To connect the actuator to a Power Cabinet - match the plug with the socket (4 vs. 15 pin) and plug it in, matching the key at the top of the plug (also marked with a red dot). Push it in firmly until the PUSH-PULL ring lock clicks in place. To disconnect the plug, first pull on the metal ring to release the lock and then pull the plug to disconnect: Keep in mind the order of connecting the actuators. Left socket panel is for odd number actuator, and right socket panel is for even number actuators. More details on layouts and actuator numbering are in section 4.4 for 2DoF setup and 4.5 for a 3DoF setup.

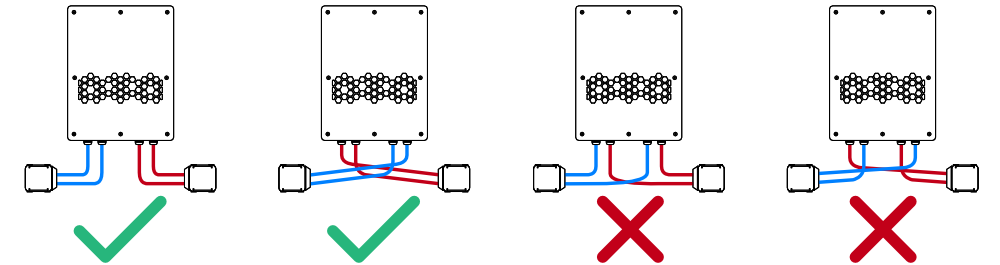

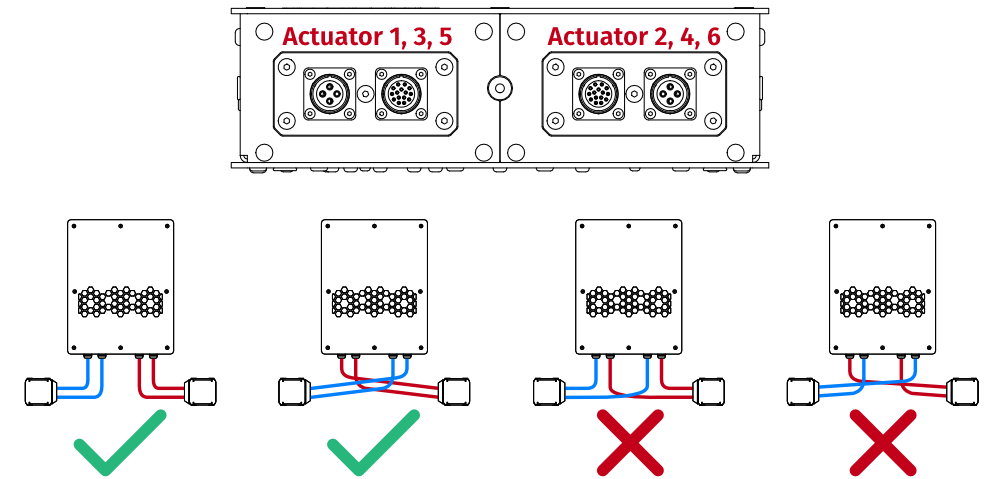

4.6.1 Actuator's cables management

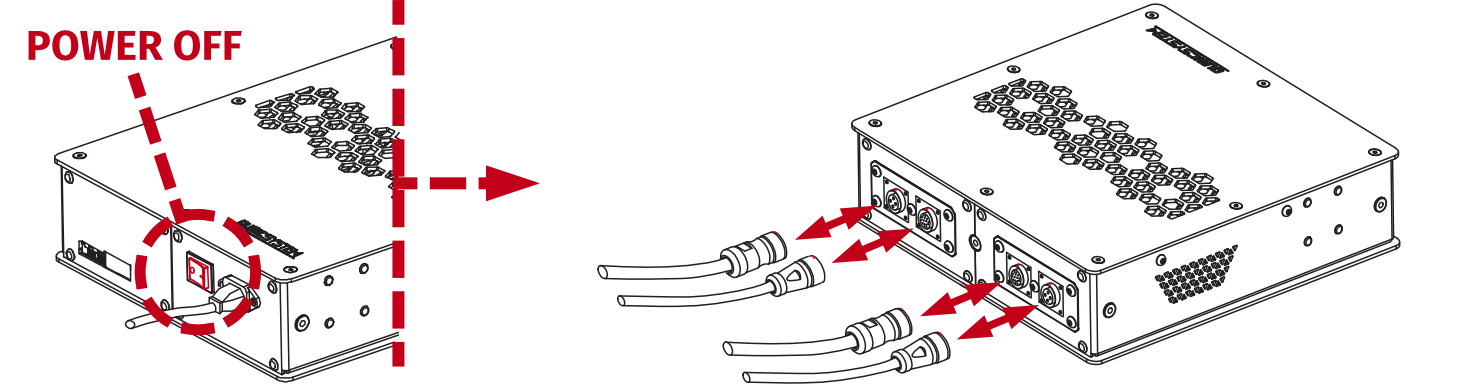

For cable management Safety precautions go to 4.1. Plugging and unplugging the actuator enables you to organize your cables more easily, but ALWAYS ensure to plug a single actuator's cables to a single socket panel. DO NOT cross them between the two actuators. Refer to an illustration below:

4.7 QS-210 2DoF cable connections

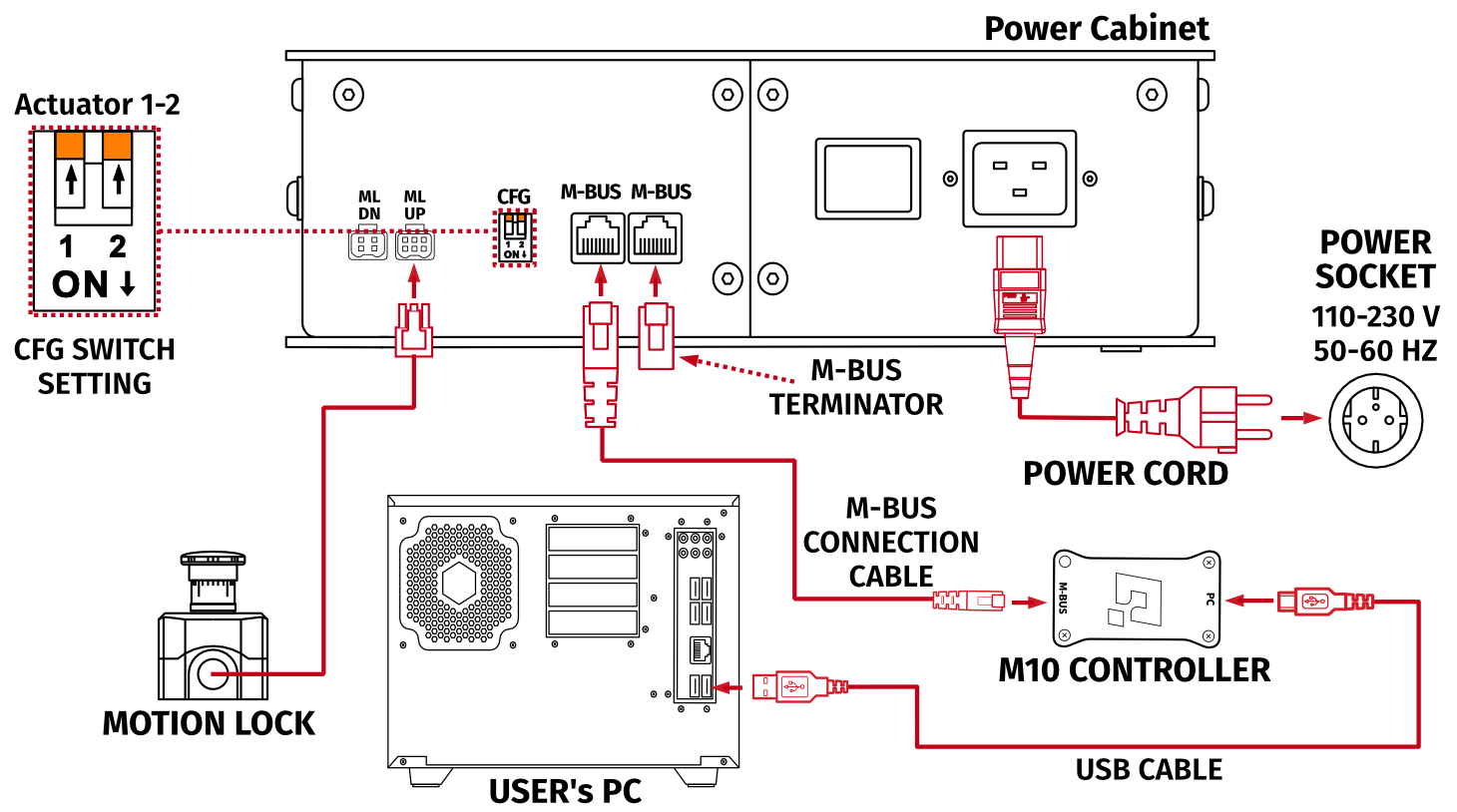

To connect the QS-210 2DoF variant proceed with following steps and connect the cables according to the connections diagram:

1. Set the correct position of the CFG DIP switch according to the actuators layout of your choice (more information about QS-210 2DoF CFG Switch position and layout selection in section 4.3).
2. Plug in the actuators to the Power Cabinet.

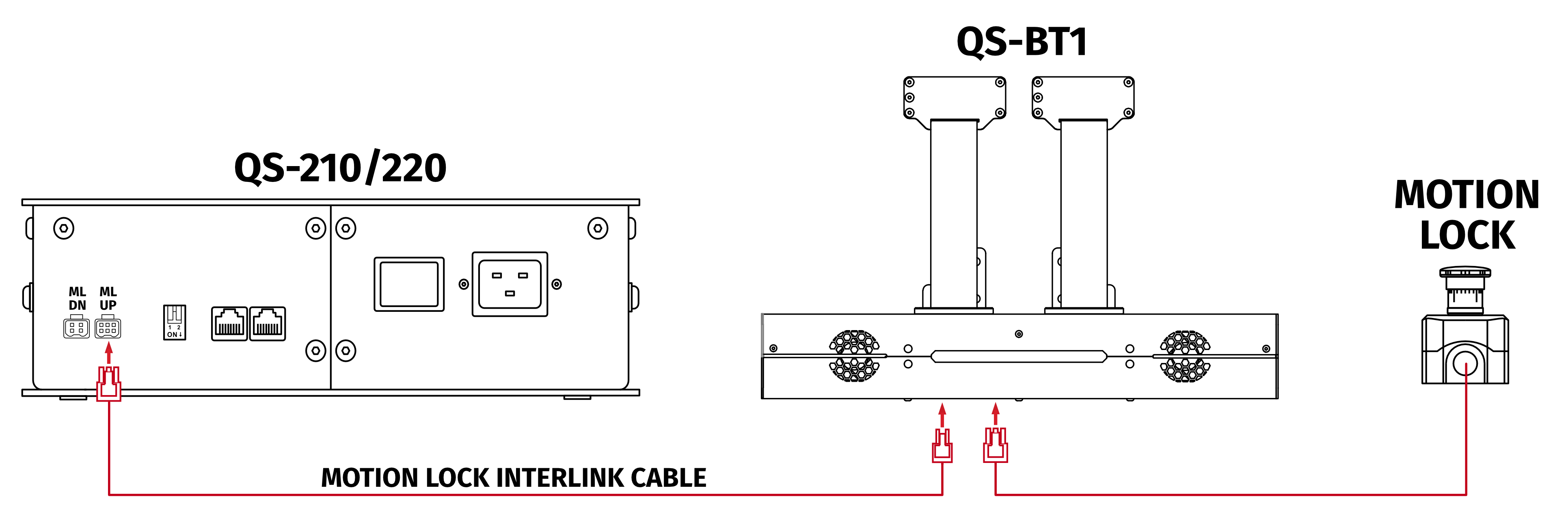

3. Plug in the Motion Lock Switch into the "ML UP" port in the Power Cabinet.
4. In a 2DoF variant (and if you don't have any other QubicSystems devices) Motion Lock "ML DN" is not used.
5. Connect M-BUS port in Power Cabinet with M-BUS port in M10 Controller using M-BUS communication cable (Power Cabinet M-BUS ports are interchangeable).
6. Insert M-BUS terminator in the second M-BUS port in the Power Cabinet (if you have any other QubicSystems devices [Power Cabinets], M-BUS terminator will be used in the last Power Cabinet - for more information refer to section 4.9).
7. Connect the M10 controller with your PC using USB cable.
8. Plug in the power cord to the Power Cabinet and a correct power socket.
9. Make sure everything is connected correctly (check if the CFG DIP switches are switched all the way up or down).
10. Turn on the power by switching the Power Cabinet power switch on.

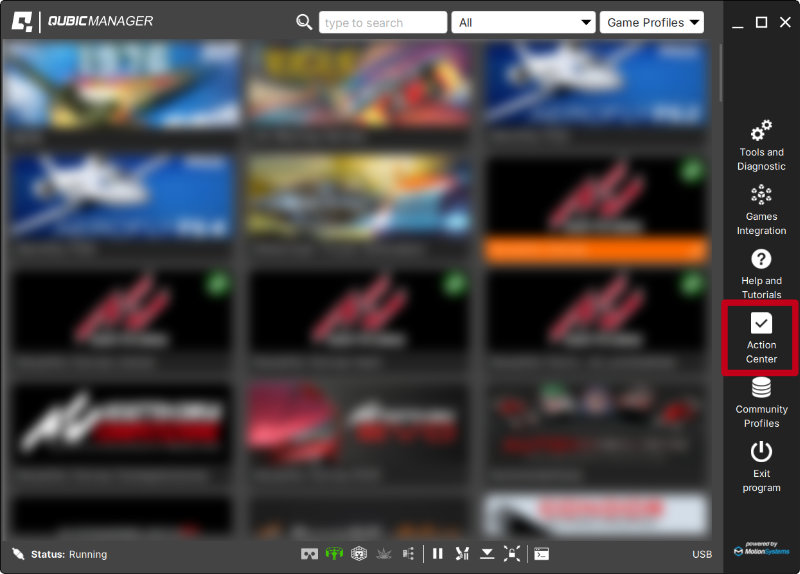

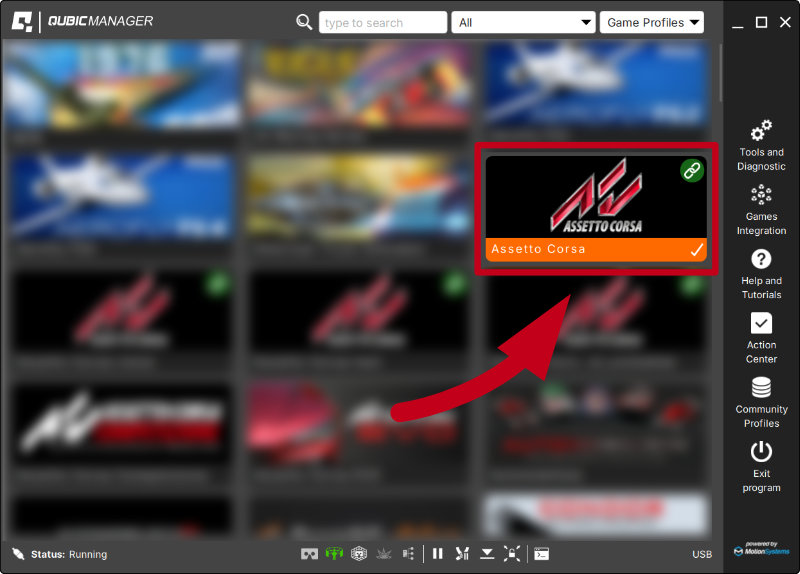

11. For the QS-210 2DoF (or any QubicSystem device) to work - QubicManager Software must be set up correctly. Go to section 4.11 for installation details.

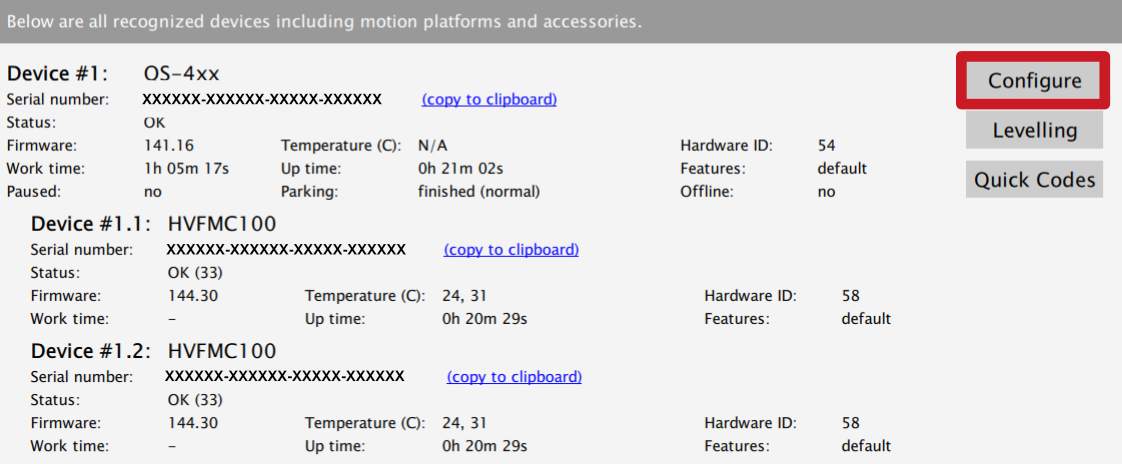

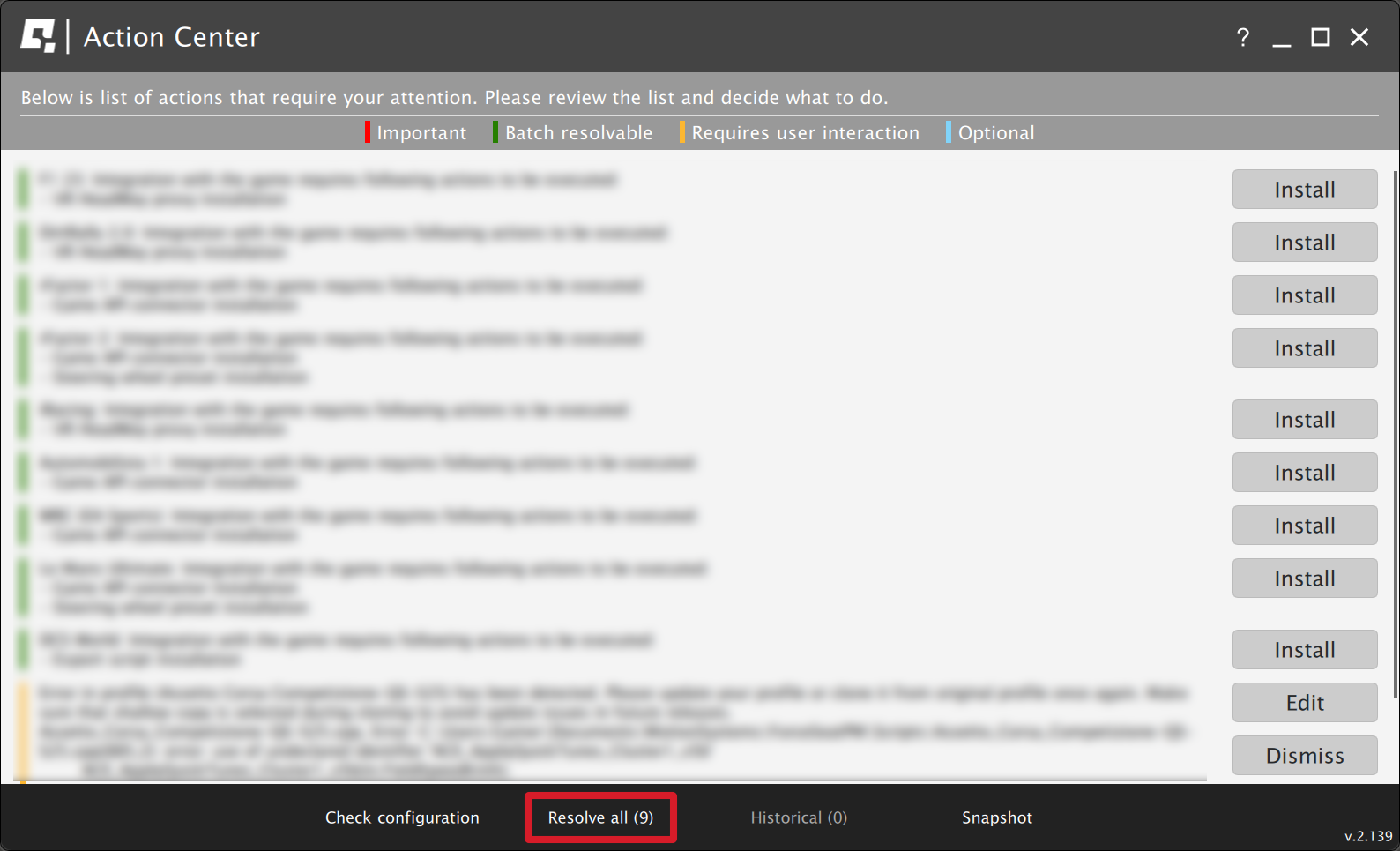

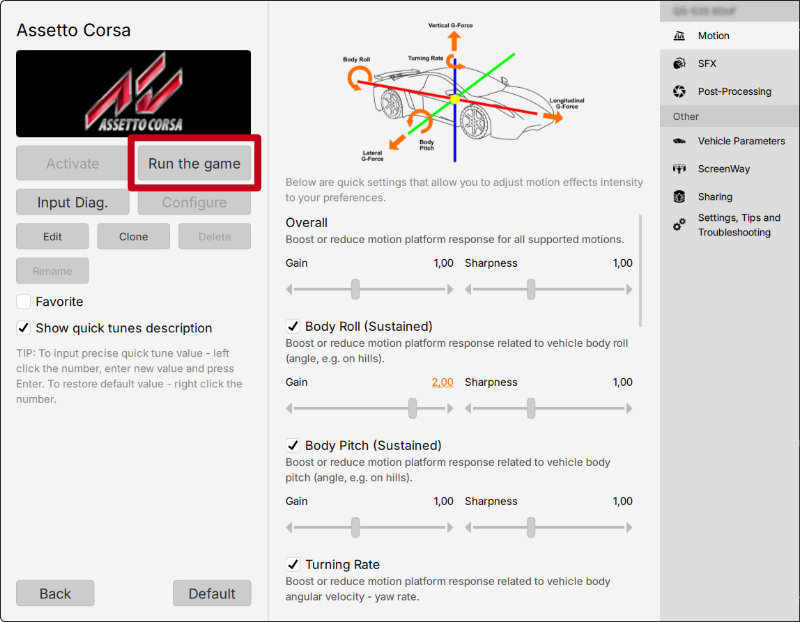

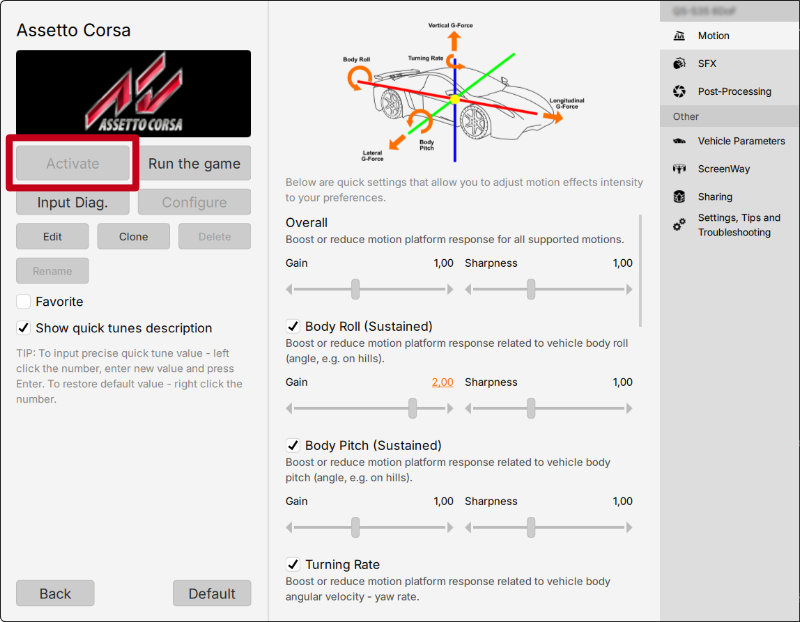

12. After software installation go to QubicManager→Tools and Diagnostics → Devices and select Configure (details in section Devices configure).

4.8 QS-210 3DoF cable connections

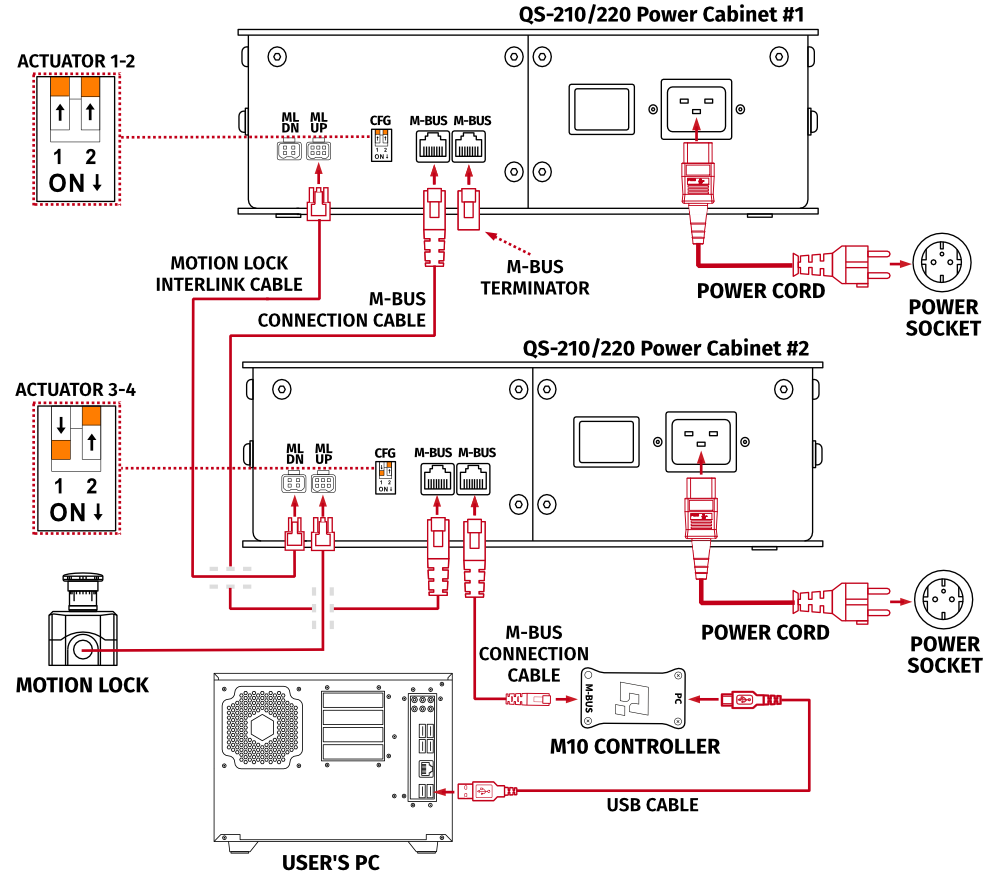

To connect the QS-210 3DoF variant proceed with following steps and connect the cables according to the connections diagram:

1. Set the correct position of the CFG DIP switches according to the actuators layout of your choice (more information about QS-210 3DoF CFG DIP switch position and layout selection in section 4.3).
2. Plug in the Motion Lock Switch into the "ML UP" port in the first Power Cabinet.

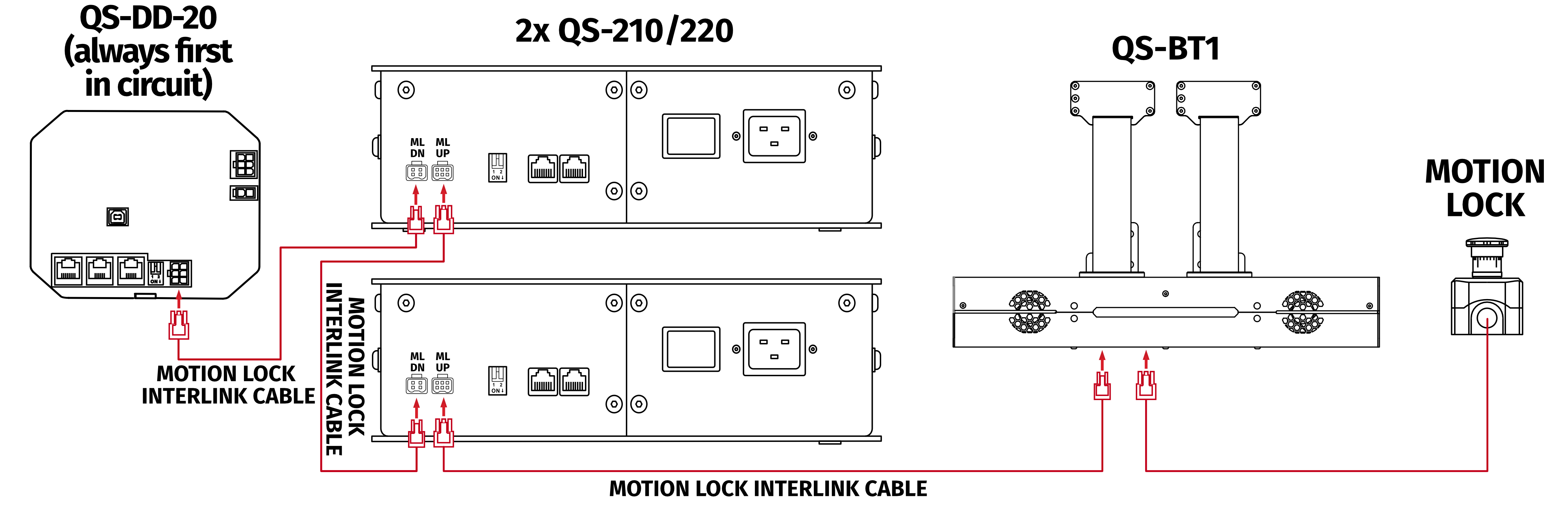

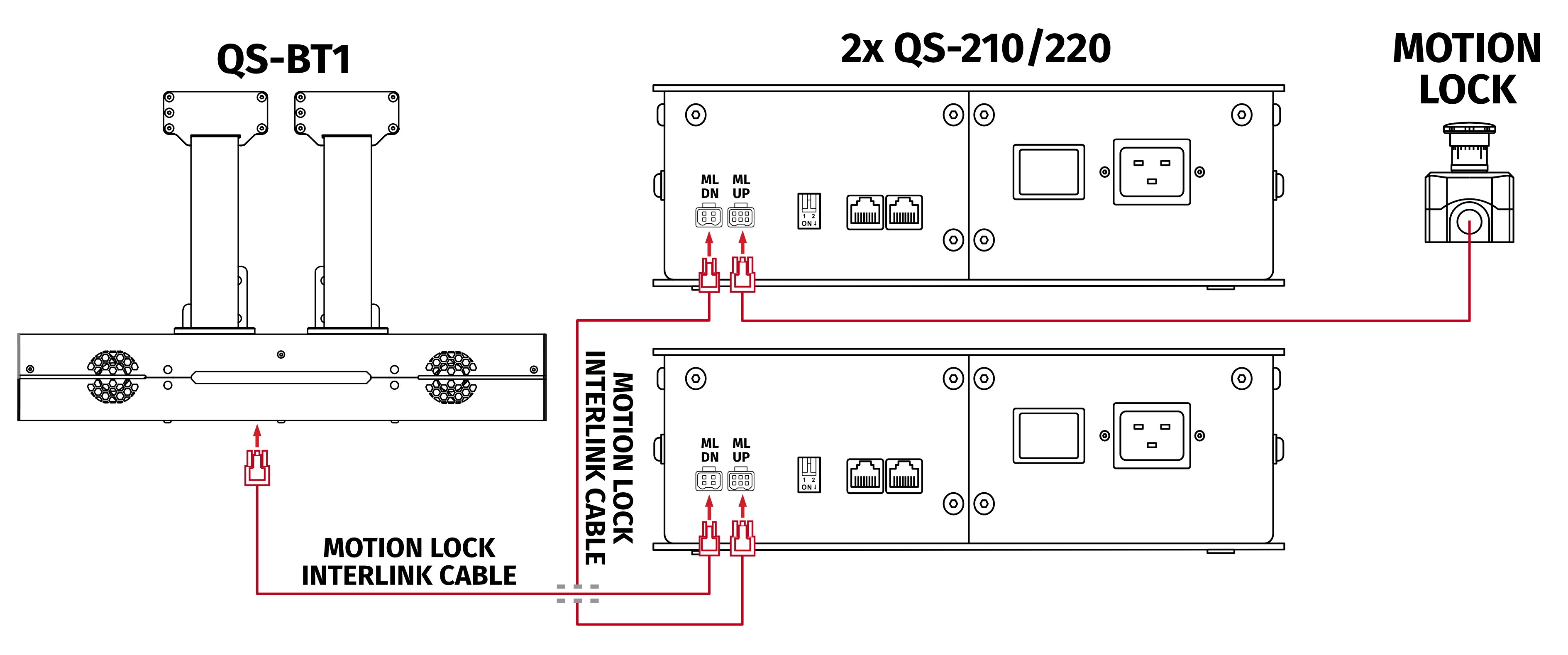

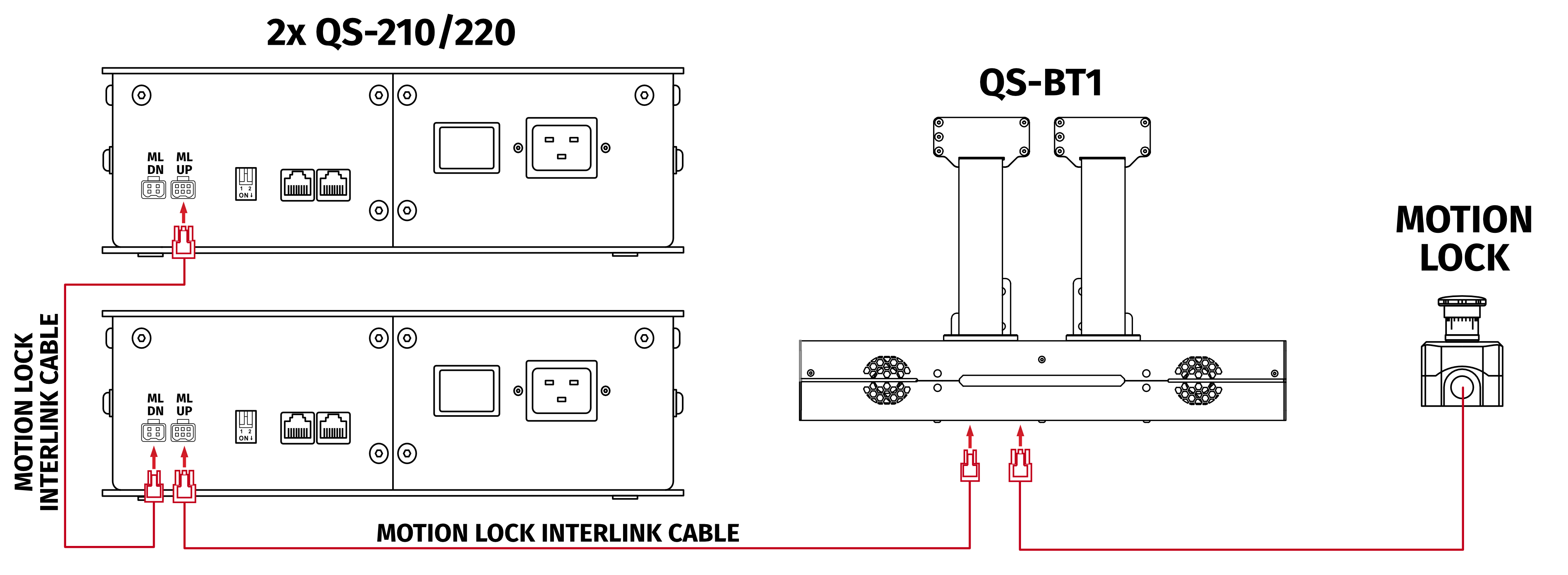

3. Connect first and second Power Cabinet with a Motion Lock interlink cable ("ML UP" port requires a 6 pin plug and "ML DN" port requires a 4 pin plug).
4. If you have more than two Qubic System devices (Power Cabinets), refer to section 4.9 for more cable connection information.
5. Connect M-BUS port in Power Cabinet with M-BUS port in M10 Controller using M-BUS communication cable (Power Cabinet M-BUS ports are interchangeable).
6. Connect both Power Cabinet's M-BUS ports with M-BUS cables.
7. Insert M-BUS terminator in the second M-BUS port in the second Power Cabinet (if you have any other QubicSystems devices [Power Cabinets], M-BUS terminator will be used in the last Power Cabinet - for more information refer to section 4.9).
8. Connect the M10 controller with your PC using USB cable.
9. Plug in the power cords to both Power Cabinets and a correct power sockets (separately fused, as suggested in section 2.4).
10. Make sure everything is connected correctly (check if the CFG DIP switches are switched all the way up or down).
11. Turn on the power by switching both Power Cabinet's power switches on.
12. For the QS-210 3DoF (or any QubicSystem device) to work - QubicManager Software must be set up correctly. Go to section 4.11 for installation details.
13. After software installation go to QubicManager→Tools and Diagnostics → Devices and select Configure (details in section Devices configure).

4.9 QS-210 with QS-CH2 cable connections

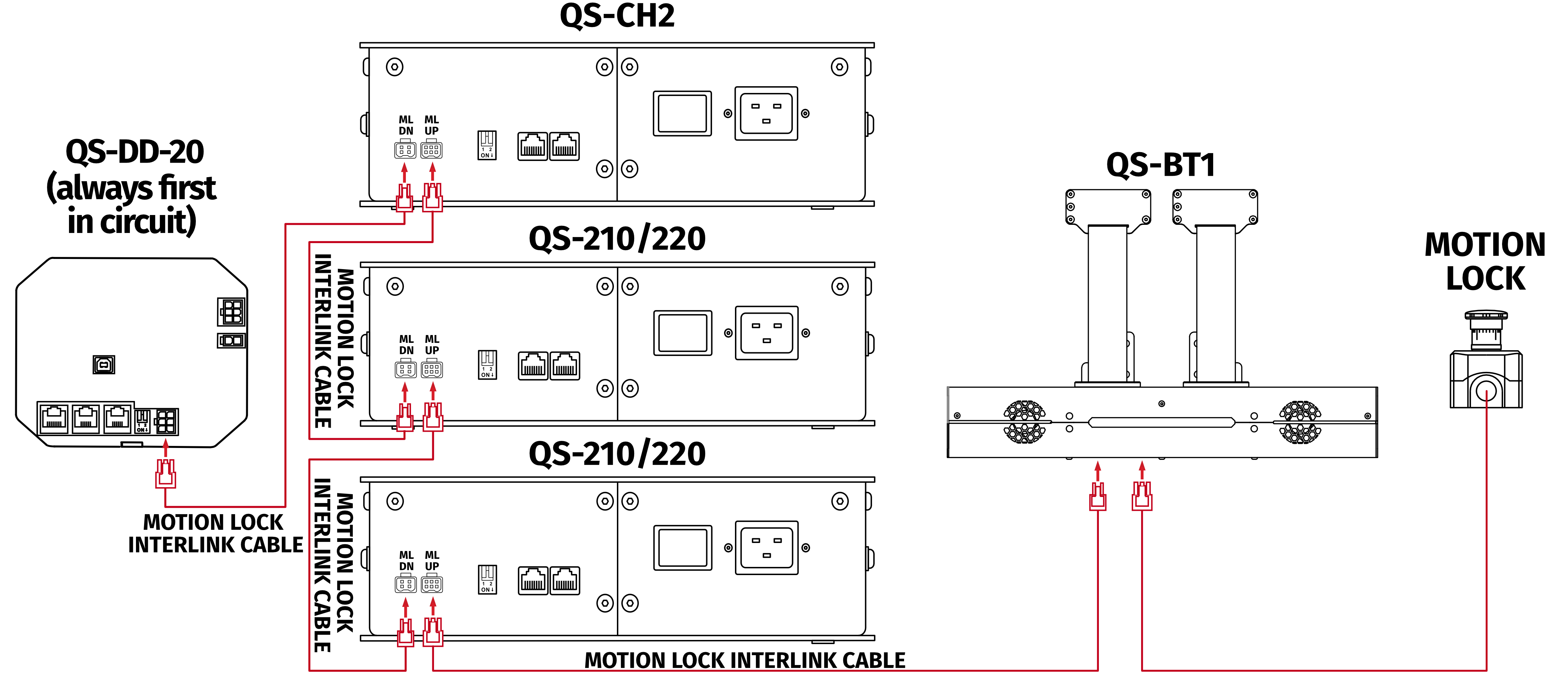

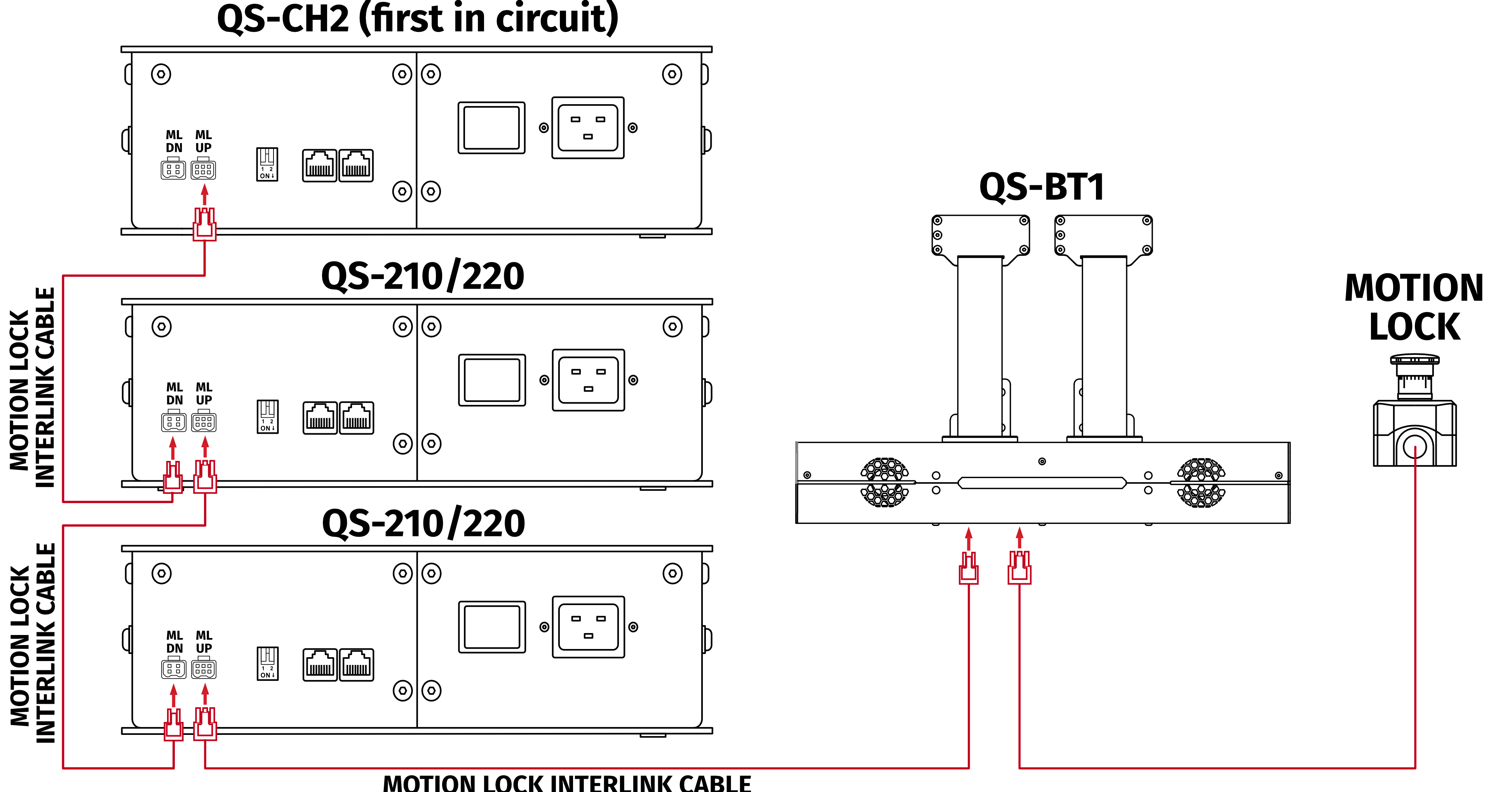

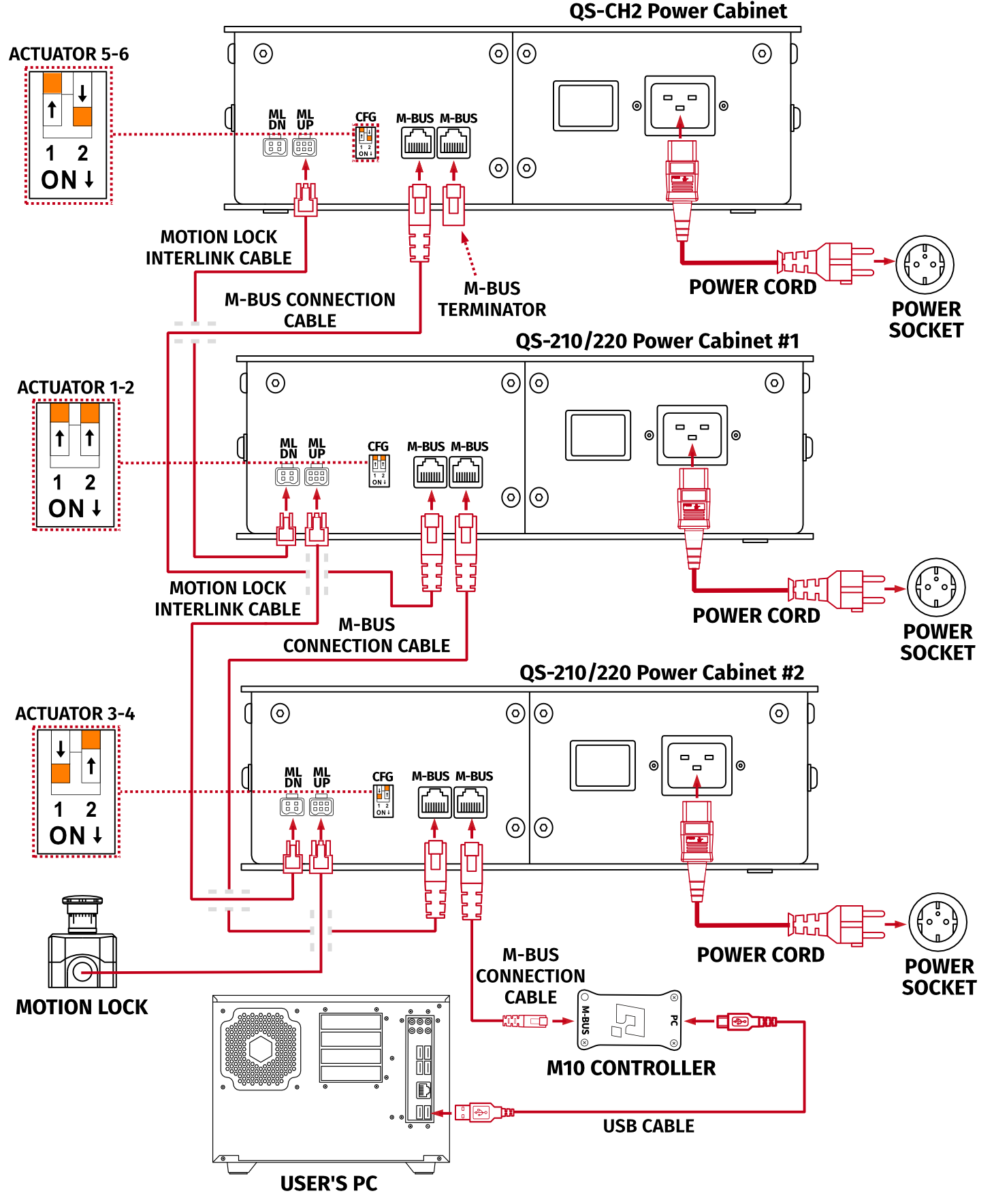

Electrical diagram of QS-210 3DoF connecting with a traction loss system (QS-CH2).

1. Set the correct position of the CFG DIP switches according to the actuators layout of your choice (more information about QS-210 3DoF CFG DIP switch position and layout selection in section 4.3).
2. Plug in the actuators to the Power Cabinet.
3. Set the correct position of the QS-CH2 CFG DIP switch, according to a diagram from a previous page.
4. Plug in the Motion Lock Switch into the "ML UP" port in the first of QS-210 's Power Cabinet.
5. Connect all Power Cabinets with a Motion Lock interlink cables ("ML UP" port requires a 6 pin plug and "ML DN" port requires a 4 pin plug).
6. "ML DN" port in the last Power Cabinet will not be used.
7. Connect M-BUS port in Power Cabinet with M-BUS port in M10 Controller using M-BUS communication cable (Power Cabinet M-BUS ports are interchangeable).
8. Connect all Power Cabinet's M-BUS ports with M-BUS cables in a row (maximum amount of interconnected Power Cabinets is 12).
9. Insert M-BUS terminator in the last M-BUS port in the last Power Cabinet.
10. Connect the M10 controller with your PC using USB cable.
11. Plug in the power cords to all the Power Cabinets and a correct power sockets (separately fused, as suggested in section 2.4).
12. Make sure everything is connected correctly (check if the CFG DIP switches are switched all the way up or down).
13. Turn on the power by switching all the Power Cabinet's power switches on.
14. For the QS-210 3DoF + QS-CH2 setup (or any QubicSystem devices) to work - QubicManager Software must be set up correctly. Go to section 4.11 for installation details.
15. After software installation go to QubicManager→Tools and Diagnostics → Devices and select Configure (details in section Devices configure).

4.10 QS-210 with QS-CH2, QS-BT1 and QS-DD-20 Motion Lock diagrams

Neither QS-DD-20 nor QS-BT1 need a M-BUS connection with any Power Cabinet. They communicate via USB cable directly with the PC.cold start
Diagrams below show Motion Lock connections with QS-210 and QS-DD-20, QS-BT1 and two of them combined in various variants. 1. QS-210 3DoF with a seat belt tensioner (QS-BT1). Variant #1 Variant #2 2. QS-210 3DoF with a seat belt tensioner (QS-BT1) and a direct drive steering wheel (QS-DD-20). 3. QS-210 3DoF with a motion platform (QS-CH2), seat belt tensioner (QS-BT1) and a direct drive steering wheel (QS-DD-20). 4. QS-210 3DoF with a motion platform (QS-CH2) and seat belt tensioner (QS-BT1). 5. QS-210 2DoF with a seat belt tensioner (QS-BT1).

4.11 Software Installation

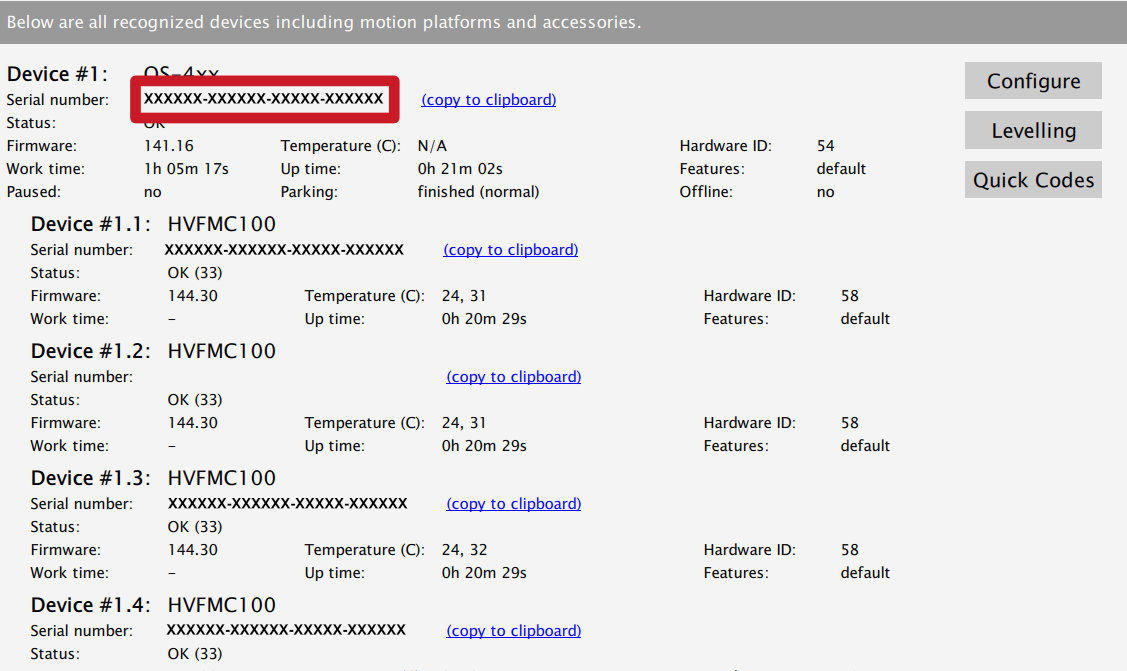

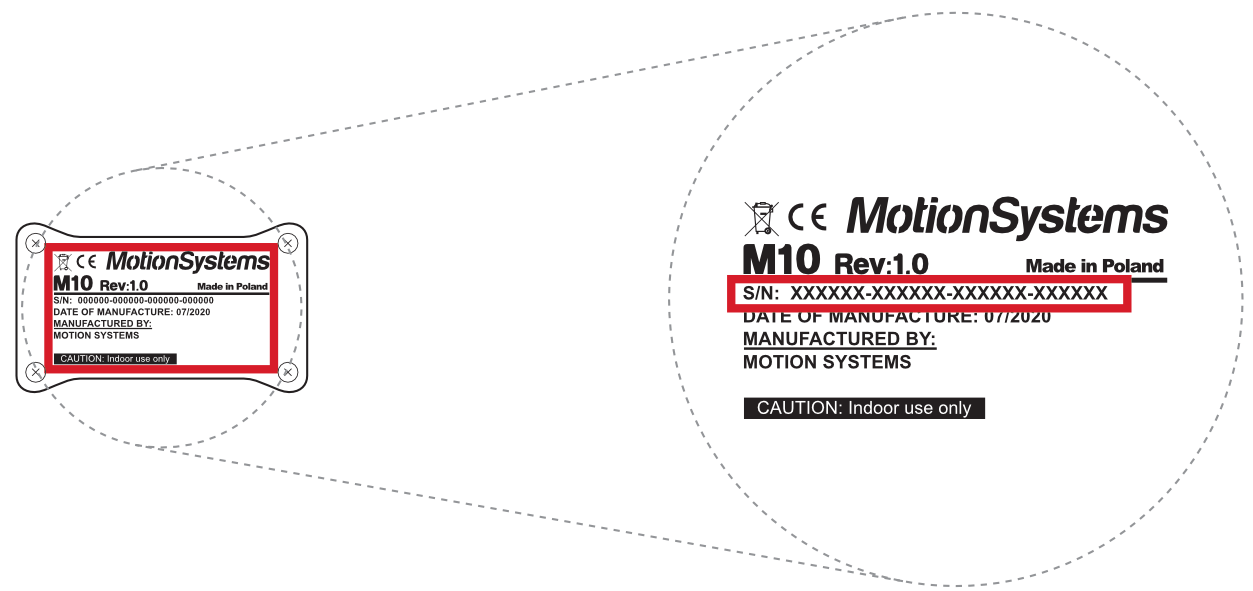

The SERIAL NUMBER can be found on the M10 identification label in the XXXXXX-XXXXXX-XXXXX-XXXXXX format. This serial number is also used for activation of FSMI (ForceSeatMI) and MT (Motion Theater) licenses - check information in section Serial number.

1. Connect the devices according to the cables connection diagram - see section 4.7 for QS-210 2DoF (p. ), section 4.8 for QS-210 3DoF (p. ) or section 4.9 for QS-210 3DoF + QS-CH2 (p. 4.9).
2. Download QubicManager from QubicSystem.com/Download
3. Enter the serial number located on the identification label.
   Info

   Alternatively, you can download a small application that will read the code directly from your device (if it is connected via USB): Download link
4. Proceed with the installation steps and launch the application.
5. Turn on the device by switching on the power switch button on the Power Cabinet (on all of them, if you have more than one)


   Image: qs-sb2_power_switch.png
6. Cycle through the Motion Lock Switch positions - press and unpress it (go to section 2.8 for details on the procedure).
7. The QS-210 will perform a start-up calibration - DO NOT change the payload of the QS-210 until the procedure is over.
8. If QubicManager has recognized the QS-210 correctly, the status of the machine visible in the lower left corner will change to Connected.
9. Check Action Center on the right side panel for a list of actions that requires attention:


   Image: qubicmanager_software_installation_screenshots1.jpg
   It is possible to solve them one by one or by pressing the Resolve All button. Firmware update may require additional confirmation in the dialogue box.


   Image: resolve_all.png
10. Go to Tools and Diagnostics →  Devices and select Configure.


    Image: configure_2.png
11. For QS-210 2DoF set: Choose the correct layout variant from the list (2 actuators setup).


    Image: Screenshot_QS1.jpg

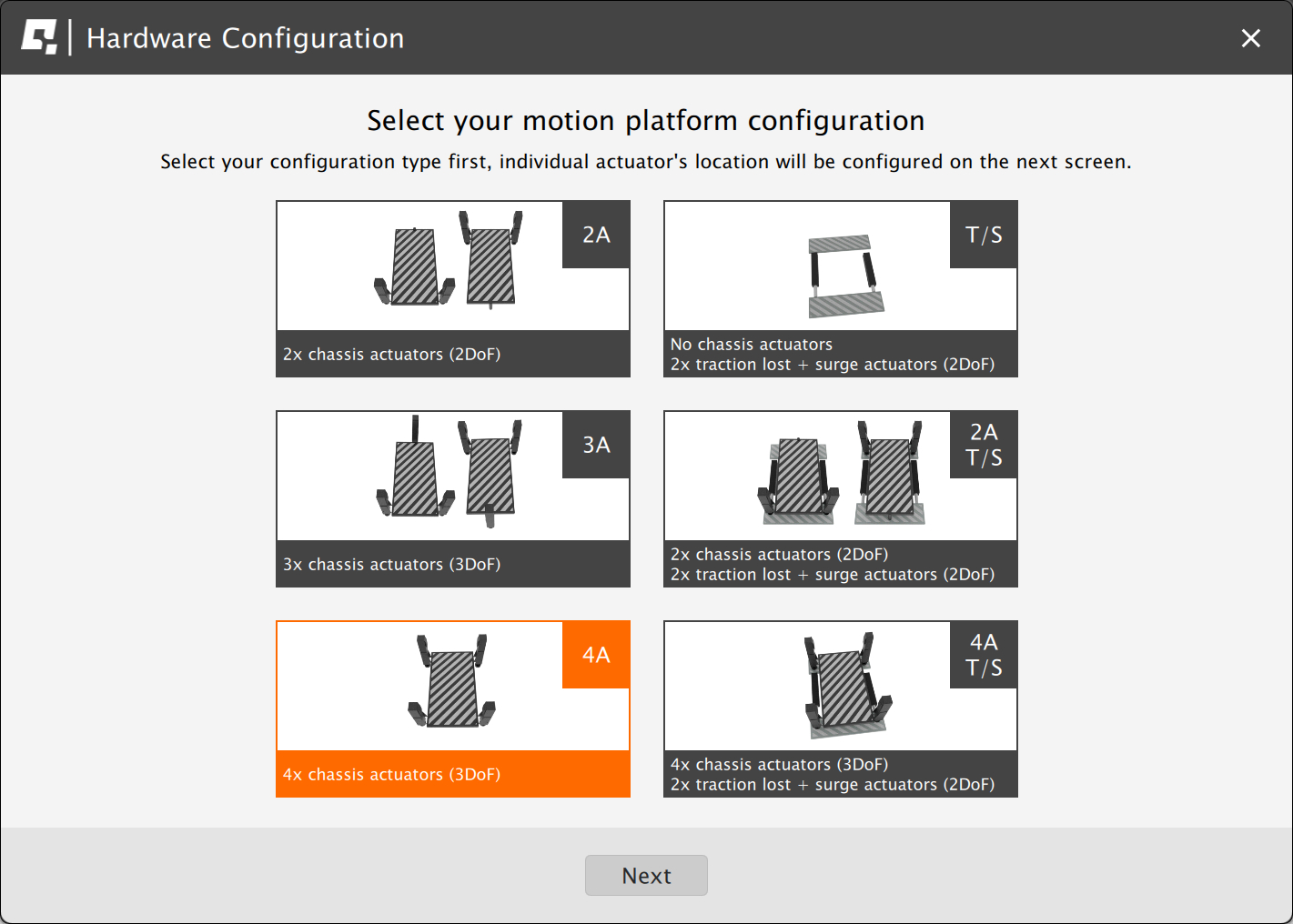

    For QS-210 3DoF set: Choose the correct layout variant from the list (4 actuators setup).


    Image: Screenshot_QS2.jpg
    For QS-210 3DoF set with traction loss control (QS-CH2): Choose the correct layout variant from the list (4A+T setup).


    Image: Screenshot_QS3.jpg
12. Measure the width between front side actuators. Enter the value in the platform dimensions Width field (in millimeters).
13. Measure the length between front and rear side actuators. Enter the value in the platform dimensions Length field (in millimeters).


    Image: Screenshot_QS4.png
    Info

    To locate the actuator by number - click on it to make it vibrate.
14. Scroll down and choose one of the operation modes:

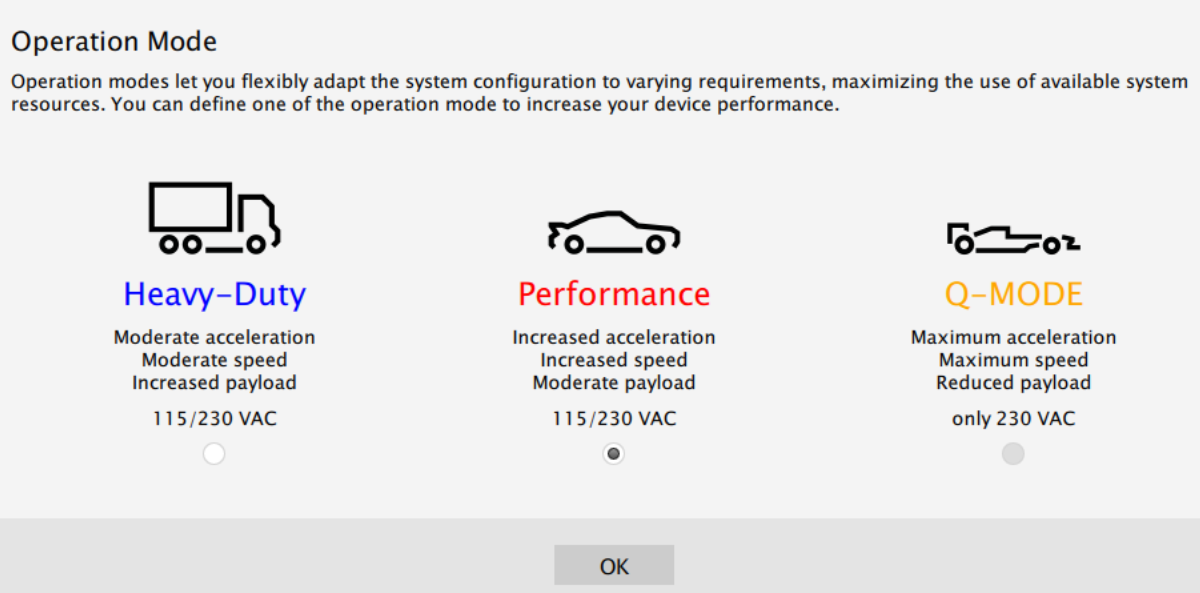

    Image: Screenshot_operation_mode.png
    Info

    • Q-MODE is unavailable for QS-210 in 120 VAC environment.
    • 2DoF single set of QS-210 works only in Heavy-Duty mode.
15. Close the configuration and return to the main application window. Choose the game and check profile details by clicking on the game tile.
    Info

    Default profiles are integrated with the software and do not require additional installation. List of supported games is available at: QubicSystem.com/Supported-games.


    Image: qubicmanager_software_installation_screenshots2.jpg
16. Adjust the motion effects intensity up to your preferences in the game profile window. Scroll down to see all of the settings.


    Image: qubicmanager_software_installation_screenshots3.jpg
17. Activate a profile by clicking the Activate button.


    Image: qubicmanager_software_installation_screenshots4.jpg
18. Launch the game by clicking the Run the game button.


    Image: qubicmanager_software_installation_screenshots5.jpg
19. You can also adjust the settings during the game simulation by pressing ALT+TAB and switching between the applications - once the profile is active changes will apply instantly.



5 Maintenance and Cleaning

To minimize the risk of abnormal heating that can result in system failure, keep the QS-210 uncovered, clean and dust-free. Cleaning the unit should be performed with a soft, dry cloth. DO NOT use solvents or cleaners that may corrode or damage materials of parts used in the QS-210 in any other way. If any of the above mentioned elements is dirty or dusty use clean cloth to remove it. Isopropyl alcohol can be used to remove contamination caused by lubricants.

5.1 Platform Level Calibration

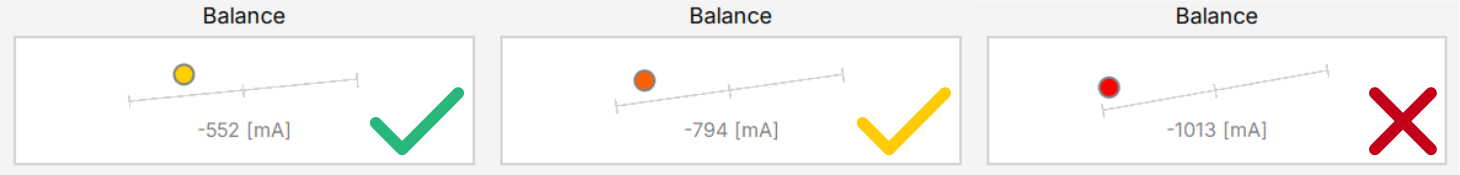

Slight imbalance may occur from uneven floor or imperfect cockpit structure. Platform levelling is available at Tools and Diagnostics →  Devices →  Levelling. Procedure:

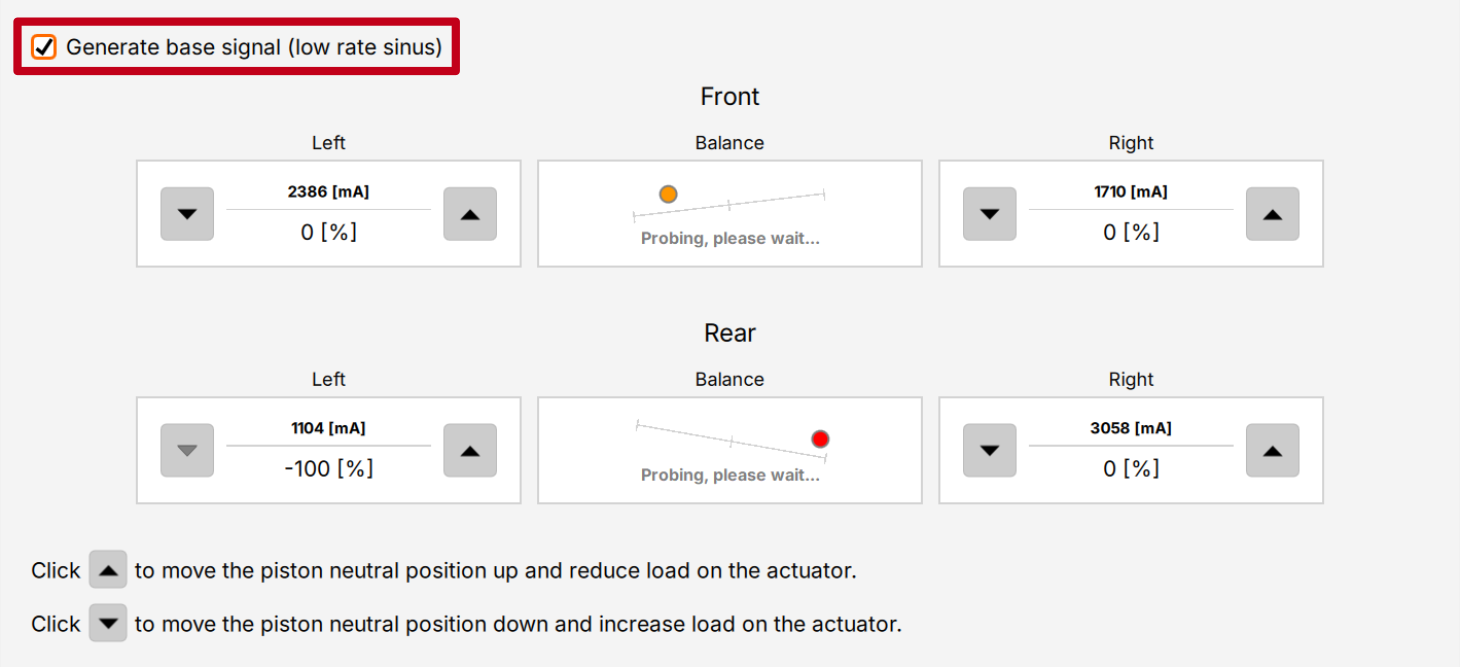

1. Click Generate base signal for the platform to check the level on each actuator - it will move up and down in sinusoidal motion.


   Image: qs-210-220_platform_levelling.png
   Info

   User should be outside of the cockpit.
2. Wait for the balance to be measured.
3. Use the arrows to reduce (UP) or increase (DOWN) the load on back and front actuators.
4. Wait for the balance to be measured again.
5. Continue until a satisfactory result will be achieved.

5.2 Checking Motion Lock button

At least once a month check if Motion Lock button is working correctly:

1. Before anyone steps into the platform - turn on the QS-210 .
2. Push the red Motion Lock button. Device status will change:


   Image: Screenshot_platform_status_motion-lock.png
3. The machine should stop and not react to any signal.
4. Turn on a simulation or a game to confirm that - with a correct profile activated proceed to a game or a simulation and engage movement.

✓

If the Motion Lock Button works correctly - platform does not react nor move in any way.

x

If the Motion Lock button does not work correctly - platform proceeds to simulate motion from the game/simulation. DO NOT use the platform, power it off and contact technical support immediately.

5.3 Actuator seal lubrication

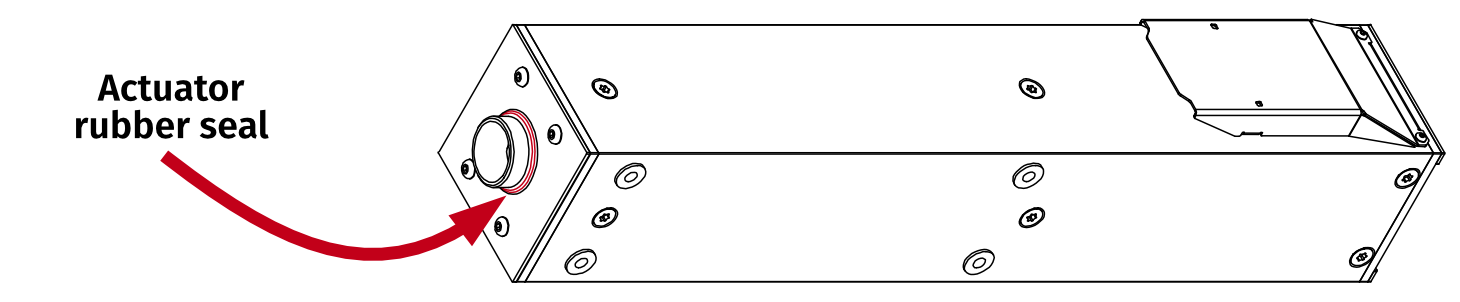

To minimize the risk of actuator failure, visually check the condition of rubber seals once a month. Actuator seals need lubricating ONLY if the actuator starts emitting squeaking noises (that happens ONLY after an extended period of operation). In order to lubricate the seals:

1. Go to QubicManager →  Tools and Diagnostics →  Platform diagnostics →  Motions (IK) tab →  set the Max Speed to 10% →  drive the C1 Heave slider all the way to the right - beware, the platform will lift to its maximum range.
2. Clean the whole piston rod thoroughly with a clean microfiber cloth.
3. Spray silicone grease evenly around the piston rod close to the housing:

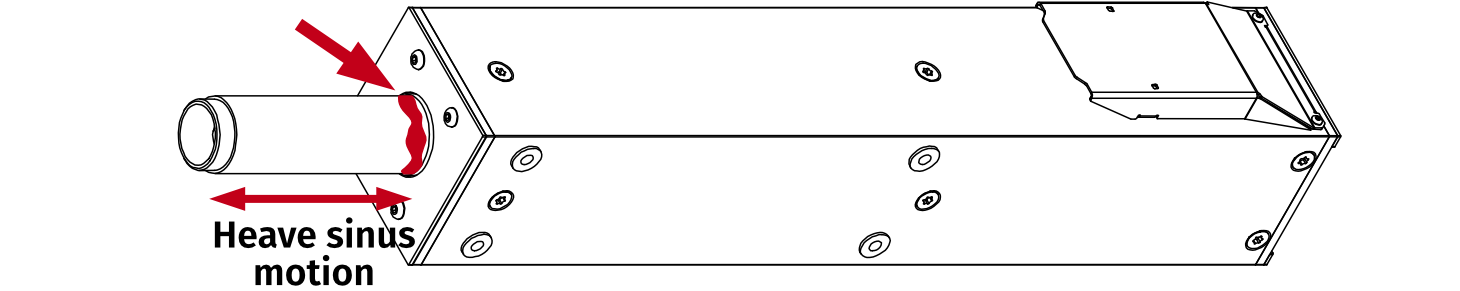

   Image: actuator_rubber_seal_2.png
4. Go back to Platform diagnostic window →  Sinus Motions (IK) →  in the Amplitude of C1: Heave slot type in "30" →  tick "Enable" (beware - heave sinus motion will begin). Allow the motion platform to run for 30-60 seconds.
5. After 30-60 second stop the sinus motion by unticking "Enable".
6. Repeat step number 1. to raise the platform.
7. Wipe off the residue of silicone grease from the piston rods.
8. Close the Platform diagnostic window - the platform will rest slowly on the actuators.

6 Troubleshooting

Before contacting technical support, try this:

• Check Action Center in QubicManager.
• Check all cable connections in the device.
• Restart QubicManager application by right-click on the application icon in the system tray and selecting Restart:


  Image: Screenshot_app_restart.jpg
• Check Motion Lock Switch position (should be unpressed to activate the motion) :


  Image: estop_positions.jpg
• Try different USB ports (also try bypassing the USB hub by a direct PC connection).
• If a problem occurred abruptly, it could be caused by a thermal protection. Turn off the QS-210 , disconnect it from power outlets and wait at least 15 minutes to let it cool down. Try turning it on again later.
• In case of any unclear electrical issues, strange behavior or abnormal work conditions, contact technical support.

6.1 QubicManager device statuses

- no device is detected. If status appears while devices are connected - indicates that firmware update failed (requires firmware recovery) or M10 controller or USB connection is at fault. Check USB connection for loose connections, try different USB ports, bypass any USB hubs, swap USB cable for a different one. - Power Cabinets are disconnected or not powered. If this status appears during operation - check power cords, power switches, CFG DIP switches configuration and M-BUS connection cables. - the device is in simulation/receives input signal. - the device is paused (Pause button at the bottom of the QubicManager window). - Motion Lock system has been triggered. Unpress the Motion lock button, check the Motion Lock button cable/connection. In a setup with no Motion Lock button - check the Motion Lock jumper. - the device is waiting for a cold start procedure (more details). - the device is performing calibration/reference run. DO NOT change the payload. - the device is parking (the game/simulation was paused or no telemetry input is available). - the device achieved parking position and is in stand-by mode. It is powered, connected and ready to be operational. - there is an issue with the connection or power - check the working status in Tools and diagnostic →  Devices.

6.2 Common problems with solutions

• Problem: QubicManager software crashes on launch with an OpenGL error. Solution long-term #1: This issue is caused by graphics drivers. Try to downgrade to a previous version of graphics drivers or check for updates. Solution short-term: To open the app, click OK on all the operating system errors. Restart the QubicManager software and you will be presented with a window:


  Image: opengl_error_3.png
  Click "YES" if you want run the application in Safe Mode (it will run a little slower). Solution long-term #2: In order to overwrite the OpenGL rendering backend permanently, type in troubleshooting in Windows search bar. Select Qubic System Troubleshooting Assistant.


  Image: opengl_error_1.png
  In the prompt window, type 6 on your keyboard and click Enter. Restart the QubicManager application.


  Image: opengl_error_2.png

6.3 Creating a snapshot

A snapshot is the easiest and fastest way to diagnose a problem. If you send in the zip file generated in the snapshot menu along with a description of the problem, technical support receives all the necessary information about the product and its configuration. It can be then analyzed to provide the best solution.

1. Open the main window of the QubicManager application.
2. Go to Tools and Diagnostic →  About / Support.


   Image: qubicmanager_software_installation_screenshots6.jpg
3. Open the Snapshot window:


   Image: qubicmanager_software_installation_screenshots7.jpg
4. Select data that will be included in the snapshot.
5. Scroll down, consent to the technical support terms and conditions and select Create & Show:


   Image: Screenshot_QS_snapshot2.jpg
6. The snapshot has been created, click the OK button - the folder with the snapshot ZIP file will open.


   Image: snapshot_2.png
7. Attach the snapshot ZIP file to your support request.

Alternatively, click Snapshot icon in the top-right corner of the Action Center:

6.4 Discord channel

We strongly recommend joining our discord channel, where our growing community is sharing amazing tips and ideas of how to set up, use and tune the Qubic System products. You can also send questions for our staff or get answers directly from the community.

7 Advanced applications

7.1 Adding additional devices to the motion lock circuit

If there is necessity to stop other devices, apart from the QS-210 , ML (Motion Lock) and additional user devices can be controlled by safety relay outputs. In the example application, the E-STOP button is connected to the external safety relay. When the E-STOP is triggered, the safety relay will activate the Motion Lock function, which will stop motion of the platform and additional devices.

Image: motion-lock-circuit_2_rgb.jpg

7.2 Implementing the working zone protection

To protect bystanders from accidental hit from moving parts of the platform, safety gate with opening sensor* can be connected to safety relay input for activating ML function. When the gate opens, the safety relay output activates the ML (Motion Lock) function and stops the motion of the platform. *Check your safety relay manual for list of applicable sensors

7.3 Increasing safety level



7.3.1 Assembling Motion Lock jumper

To apply solutions which require using power line contactors, Motion Lock connection cables in the QS-SB2 power cabinet needs to be replaced with jumpers. To prepare a jumper, you need to assemble recommended connector as shown below:

Image: motion_lock_jumper_rgb.jpg

7.3.2 Adding power-cut circuit with E-STOP button

If specific SIL/PL rated level needs to be achieved, it might be necessary to install a power cut-off device. Two contactors connected in series and controlled by safety relay can be used to provide or cut-off power line to QS-SB2 power cabinets. When safety function on safety relay input is triggered, a safety relay will switch off the contactors, thus cutting-off the power to the platform. To apply this solution, ML UP connection cables needs to be replaced with prepared jumper as described in section 7.3.1.

7.3.3 Implementing the working zone protection with power-cut circuit

In example application contactors connected in series provide power line to the QS-SB2 power cabinets. When safety function on safety relay input is triggered, a safety relay will switch off the power contactors, thus cutting-off the power to the platform. *Check your safety relay manual for list of applicable opening sensors

7.4 Implementing non-factory Motion lock switch

For non-factory Motion Lock plug setup, you must assemble plug and connectors as shown below: If you want to assemble custom Motion Lock switch or a button box setup (only Double Pole Single Throw switch compatible) using QubicSystem Motion Lock interlink cable, follow the diagrams below:

8 Conformity information

Image: CE_conformity_information.png

The QS-210 meets the requirements of CE marking and relevant regulations of the EMC Directive 2014/30/EU.

9 Environmental Impact and Disposal

Image: disposal.png

DO NOT dispose of this product with standard household waste but drop it off at a collection point for the disposal of Waste Electrical and Electronic Equipment for recycling.

QS-210 is shipped with wooden cases/cardboard boxes. If the packaging is no longer needed, it can be fully recycled. QS-210 is an advanced device and if stored or disposed of incorrectly it could harm the environment or/and other people. When the device is no longer in use it should be disposed in environmental safe manner in compliance with applicable local work and environmental protection regulations. If no other agreement of disposal was concluded, the device shall be dismantled for disposal as follows:

• Metal parts should be scrapped.
• Electric and electronic components should be disposed of in the specialized disposal center.
• Other materials should be sorted and disposed of accordingly to the local law and regulations.

10 Liability Disclaimer

If permitted under applicable law, Motion Systems and its subsidiaries disclaim all liability for any damages caused by one or more of the following:

• The product has been modified, opened, or altered.
• Failure to comply with assembly instructions.
• Inappropriate or abusive use, negligence, an accident (an impact - for example).
• Normal wear.

11 Warranty

Motion Systems warrants to the consumer that this product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for concerning this product. For commercial customers there is a one (1) year limited warranty, starting on the original date of purchase. For non-commercial customers there are two (2) years warranty, starting on the original date of purchase. Within the warranty period, the product will be repaired or replaced free of charge, excluding shipping charges. This warranty shall not apply:

• If the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the QS-210 with any unsuitable element, including in particular power supplies, chargers, or any other elements not supplied or approved by Motion Systems for this product).
• In the event of failure to comply with the instructions provided by technical support.
• To software (said software being subject to a specific warranty).
• To accessories (cables, cases, for example).
• If the product was sold at public auction or if the product has suffered damage as a result of force majeure: flood, fire, earthquake, storm.

This warranty is non-transferable. No new warranty period commences if the product is repaired or replaced. Your statutory rights towards the seller are not affected or restricted by this warranty. Motion Systems, and their partners are not liable for any indirect, incidental, or punitive damages from use of this product. In case of malfunction during the warranty period immediately contact technical support.

12 Copyright

Qubic System is a trademark of Motion Systems. All rights reserved. All the contents in this user manual are the intellectual property of Motion Systems. No part of this manual, including the products and software described in it, shall be modified or translated into any language without the prior written permission of Motion Systems. Specifications and information in this manual are subject to change at any time without obligation to notify any person of such revision or changes. Illustrations are not binding.

13 Manufacturer information
